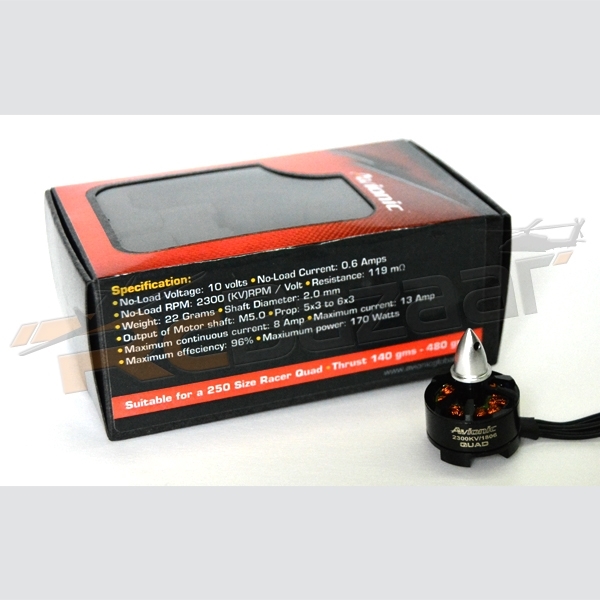

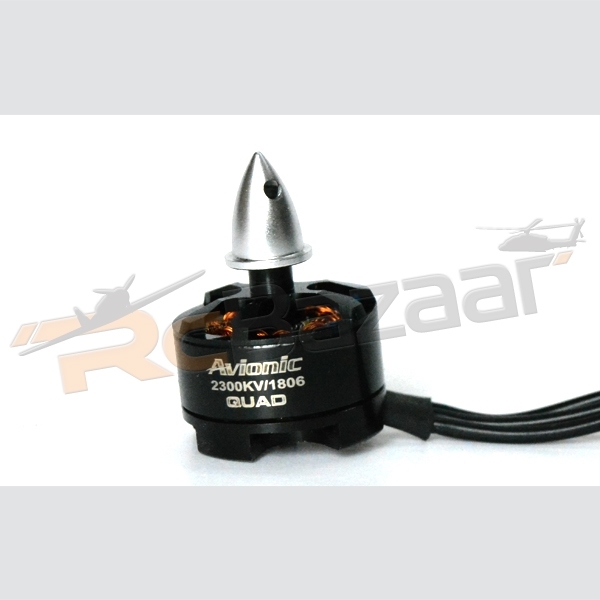

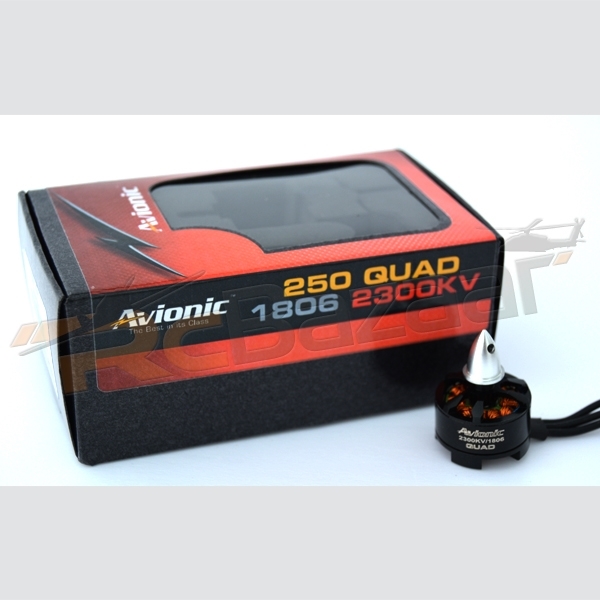

This is a Counter Clockwise Avionic Mini Quad C1806 KV2300 brushless motor
Introducing Avionic series of brushless motors. This is a unique design made specifically for Avionic Quads motor with a swirl top design to allow the maximum cooling of the motor. A similar design you will not get in any other hobby store around you.
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RMP and are made for RC controlled models only and will last for more than what your RC model asks for.
The Avionic Mini Quad C1806 KV2300 brushless motor is specifically made for 250 sizes multi rotors.

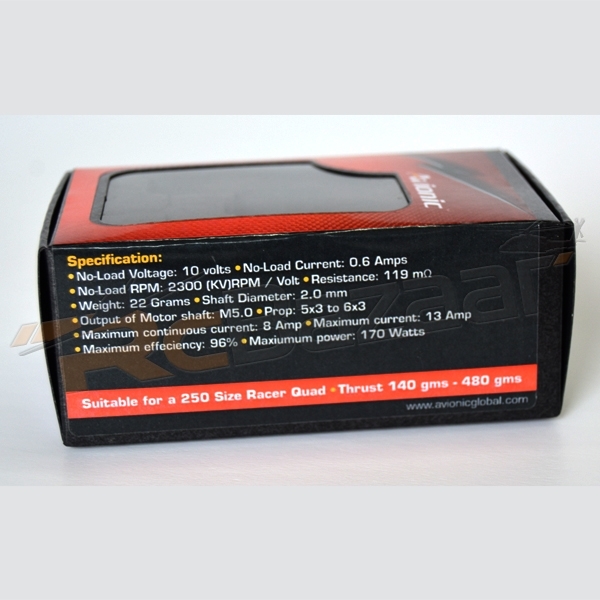

Specification:
● No-Load voltage: 10V
● No-Load current: 0.6A
● No-Load voltage: 10V
● Kv (rpm/v): 2300
● Power(W): 250
● Motor Shaft: 2mm
● Output of motor Shaft: M4
● Resistance(mΩ): 119
● Continuous current(A): 8
● Maximum current(A): 13
● Cells Li-PO: 2-4
● Continuous Maximum efficiency: 96%
● Maximum Power: 170W
LOAD TEST REPORT
| Voltage (V) |
Prop |
Throttle |
Current (Amp draw) |
Thrust (Gms) |
| 11.1 |
5x3 GF |
50% |
2.1 |
140 |
| 11.1 |
5x3 GF |
66% |
3.2 |
205 |
| 11.1 |
5x3 GF |
83% |
5.0 |
295 |
| 11.1 |
5x3 GF |
100% |
7.7 |
400 |
| 11.1 |
5x4 GF |
50% |
2.3 |
159 |
| 11.1 |
5x4 GF |
66% |
4.0 |
240 |
| 11.1 |
5x4 GF |
83% |
6.1 |
320 |
| 11.1 |
5x4 GF |
100% |
10.0 |
460 |
| 11.1 |
6x3 GF |
50% |
2.4 |
170 |
| 11.1 |
6x3 GF |
66% |
4.5 |
260 |
| 11.1 |
6x3 GF |
83% |
7.0 |
370 |
| 11.1 |
6x3 GF |
100% |
10.8 |
480 |
