RcBazaar. Avionic Mini Quad C1806 KV2300 brushless motor (CW)

Avionic Mini Quad C1806 KV2300 brushless motor (CW)

SKU: RZ04525

Current rating is 0.00. Total votes 0.

View / Write review

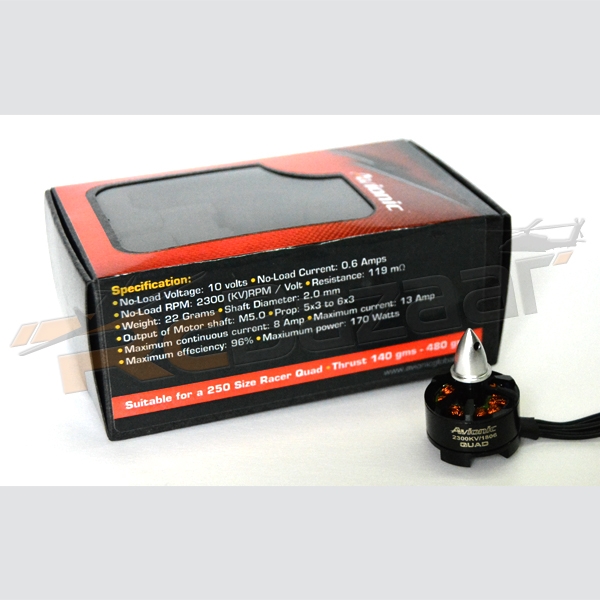

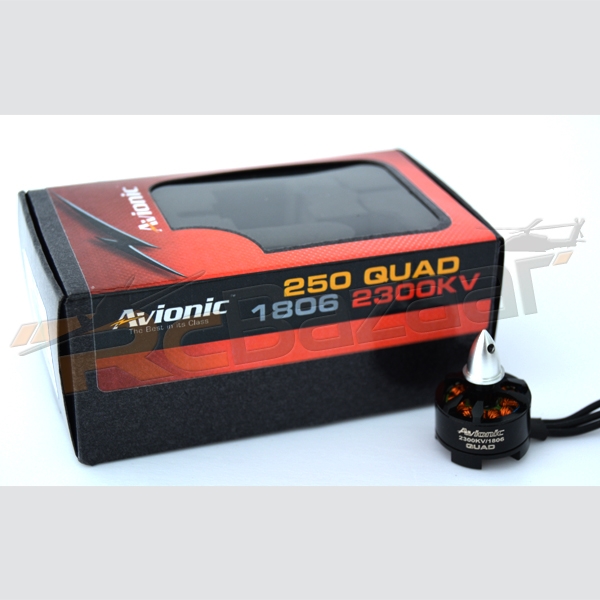

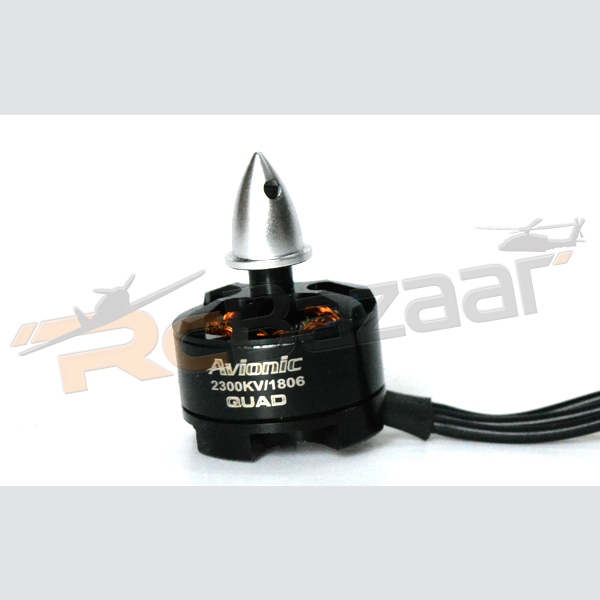

This is a Clockwise Avionic Mini Quad C1806 KV2300 brushless motor
Introducing Avionic series of brushless motors. This is a unique design made specifically for Avionic Quads motor with a swirl top design to allow the maximum cooling of the motor. A similar design you will not get in any other hobby store around you.

Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RMP and are made for RC controlled models only and will last for more than what your RC model asks for.
The Avionic Mini Quad C1806 KV2300 brushless motor is specifically made for 250 sizes multi rotors.

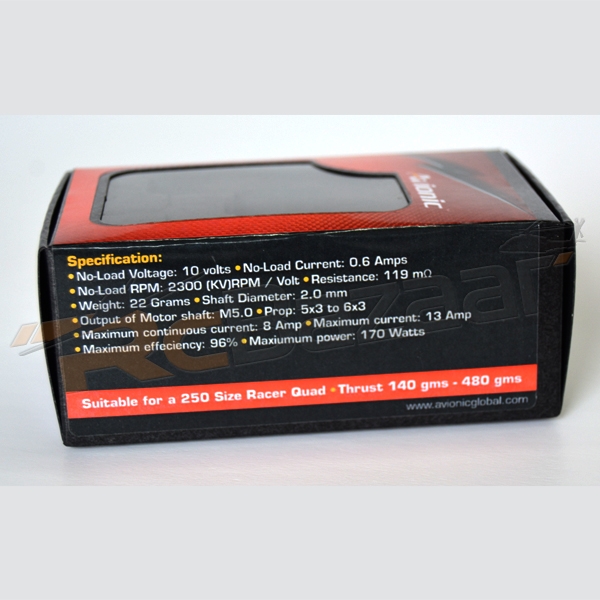

Specification:
● No-Load voltage: 10V
● No-Load current: 0.6A
● No-Load voltage: 10V
● Kv (rpm/v): 2300
● Power(W): 250
● Motor Shaft: 2mm
● Output of motor Shaft: M4
● Resistance(mΩ): 119
● Continuous current(A): 8
● Maximum current(A): 13
● Cells Li-PO: 2-4
● Continuous Maximum efficiency: 96%
● Maximum Power: 170W

LOAD TEST REPORT

Voltage (V)	Prop	Throttle	Current (Amp draw)	Thrust (Gms)
11.1	5x3 GF	50%	2.1	140
11.1	5x3 GF	66%	3.2	205
11.1	5x3 GF	83%	5.0	295
11.1	5x3 GF	100%	7.7	400
11.1	5x4 GF	50%	2.3	159
11.1	5x4 GF	66%	4.0	240
11.1	5x4 GF	83%	6.1	320
11.1	5x4 GF	100%	10.0	460
11.1	6x3 GF	50%	2.4	170
11.1	6x3 GF	66%	4.5	260
11.1	6x3 GF	83%	7.0	370
11.1	6x3 GF	100%	10.8	480
