S-bus connection
Switch on your RCB OS10 and go-to model setting/bind (do not switch the bind firstly) now connect the esc turn it on ( do not connect the RCB OS 10 receiver) after turning on the Esc connect the signal wire with receiver Ch no 3 (NOTE: BEFORE TURNING ON THE RECEIVER PRESD THE BIND SWITCH AND CONNECT THE ESC THROTTLE SIGNAL TO RECEIVER) blue and red led will blinking NOW CLICK THE BIND KEY ON YOUR TRANSMITTER..... wait and it's binded Bingo! You s-bus is ready to work from ch no 10.
Fail-safe : while both TX & RX are turned on, put you TX's Throttle stick idle (full down to zero) now press & hold bind key on RX it will blinking and steady in 1 second. Bingo fail-safe is activated.
From:
Guest
|
Created on:
7/30/2020 1:51 PM
Was this review helpful?
Yes
No
(
0
/
0)
S-bus connection
Watch the avionic RZ8 binding process for s-bus. Do the same with RSB OS 10 RECEIVER, so you guys connect the Kbar Vbar or latest flybarless system with this transmitter. And I'll soon upload the video as well. I have tried to modify the tx to bind with different brands like Devo, and Dam2 spectrum receiver. I'll upload that soon too. Stay tune.
From:
Guest
|
Created on:
7/24/2020 2:43 AM
Was this review helpful?
Yes
No
(
0
/
0)
Very great transmitter
Has good range and feels great
From:
Guest
|
Created on:
6/13/2019 1:12 PM
Was this review helpful?
Yes
No
(
1
/
0)
Cheap and Best Transmitter
One of best Transmitter sold by RCBazaar at this low budget. Interested to buy this only
From:
RITESH KUMAR
|
Created on:
3/24/2017 3:07 PM
Was this review helpful?
Yes
No
(
0
/
0)
SBUS mode
How to get SBUS output from the RZ-10 receiver to connect to pixhawk?
From:
Himanshu Kosekar
|
Created on:
11/7/2016 12:23 AM
Was this review helpful?
Yes
No
(
2
/
1)
Good but...
This is the best transmitter by an indian company. Loads of features at a very affordable price. Hats off to rcbazaar...but there are some cons...
1.It has got no exchangeable module.
2.wished there was a bigger and better screen.
3. Cheap and old design.
4. There are no compatible modules with recevier like temp. sensors, altitude sensors, barometer etc.
I wish they make a different model with all this included..it would be a killer combo...potentially beat the frsky taranis.
From:
Rounak Kundu
|
Created on:
10/1/2016 8:34 PM
Was this review helpful?
Yes
No
(
1
/
0)
Receiver
Are the transmitter and receiver transreceivers? I've noticed that the transmitter displays the voltage of the battery powering the receiver on the display. How does the receiver send the voltage data to the transmitter?
+++++++++
hello.. yes this is called as telemetry and other sensors can be added in future, like air speed, altitude etc
regards
Team RcBazaar
From:
|
Created on:
6/12/2016 10:56 PM
Was this review helpful?
Yes
No
(
1
/
0)
Receiver power
Can the receiver be powered with a 9V battery?
Product is operating really well, excellent choice.
++++++++++++
hello
pls do not power the with 9V.. you will end up burning the receiver.. use below 6V..
the specs of the receiver is here http://www.rcbazaar.com/product.aspx?productid=4785
or as below

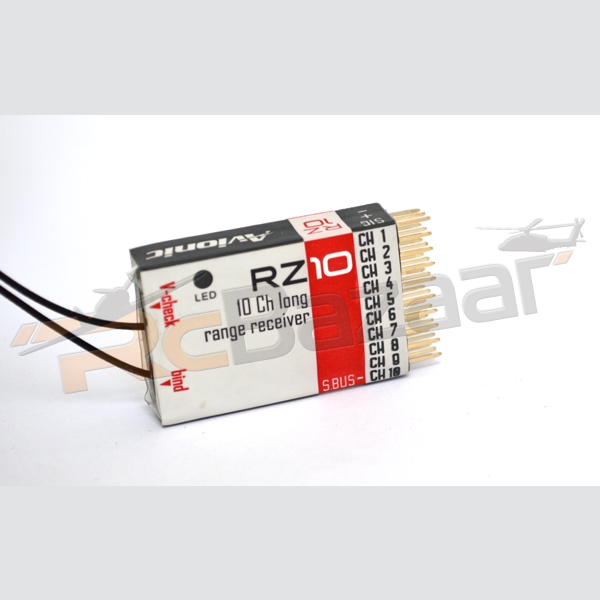

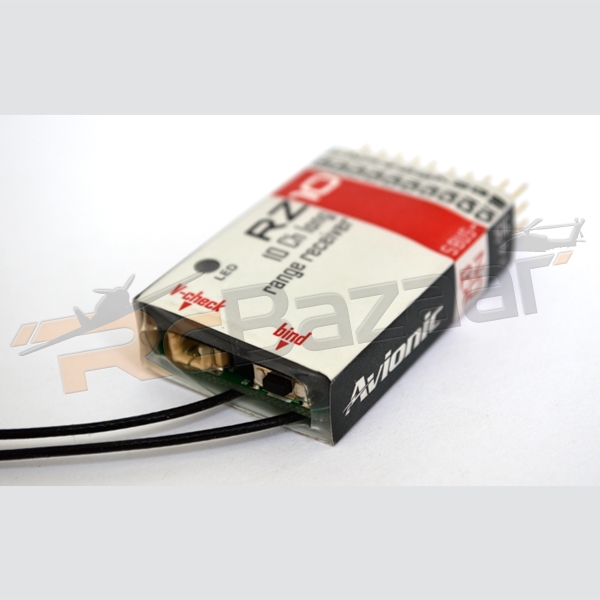

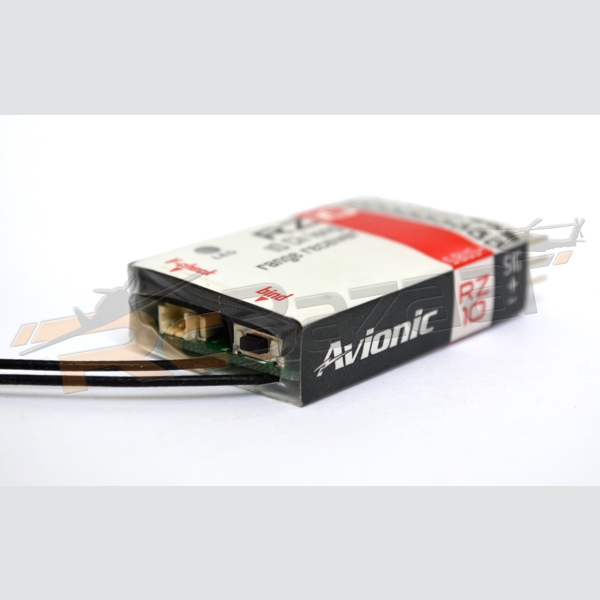

Features
• Channel: 1-10CH
• Frequency range: 2.4GHz-2.483GHz
• Dimension:34.2×18.4×8.7mm
• Weight: 6.5g
• Two-Way:RX or BAT. Voltage
• Operating voltage: 4.8V-6.0V
• Output pulse: PWM/S.bus
• Resolution:1μs
• Antenna:Dual
regards
Team RcBazaar
From:
|
Created on:
6/4/2016 6:49 PM
Was this review helpful?
Yes
No
(
1
/
0)
Open source firmare
There is no source in the git repo. All I saw was a readme file. Did I miss it.
+++++++++++
hi
yes you did miss it.. below is the link to the source code
https://github.com/RcBazaar/Avionic-RCB-OS-10
regards
team rcbazaar
From:
Anshuman Pradhan
|
Created on:
4/21/2016 3:55 PM
Was this review helpful?
Yes
No
(
0
/
0)
Control range
What about control range of this radio & how many mW?
From:
Jitendra Kumar
|
Created on:
11/19/2015 6:52 PM
Was this review helpful?
Yes
No
(
0
/
0)
channel mixing
Does it support custom channel mixing or just like the rcb6i thing it comes with predefined mixes and no custom channel mixing allowed??
++++++++++++
the RCB OS-10 has the capability of custom channel mixing
regards
Team RcBazaar
From:
Ashish Chauhan
|
Created on:
11/18/2015 4:04 PM
Was this review helpful?
Yes
No
(
0
/
0)
Cool
Nice one
From:
J L Christian Jeyaraj
|
Created on:
11/15/2015 12:03 PM
Was this review helpful?
Yes
No
(
0
/
0)
modifications
can this transmitter be modified to accept the frsky DJT module?
+++++++++++++++++
Hello,
NO... this transmitter is developed by us and we have not made any compatibility with other manufactures like frsky etc... also there are no exchangeable modules on this radio..
if we get more queries and demand on the way forward we will look at changing the design of the radio with removable modules.. currently this radio will run with the avionic 10ch, 6ch and 4ch receiver.. we will be launching in a month or two our 8ch receiver which again will be compatible with this radio
regards
Team RcBazaar
From:
gokul choyi
|
Created on:
11/10/2015 11:55 PM
Was this review helpful?
Yes
No
(
0
/
0)
Looks amazing - looking forward to the launch
This looks absolutely amazing! I am looking forward to its launch.
From:
Aakash Polra
|
Created on:
11/6/2015 8:24 PM
Was this review helpful?
Yes
No
(
0
/
1)
