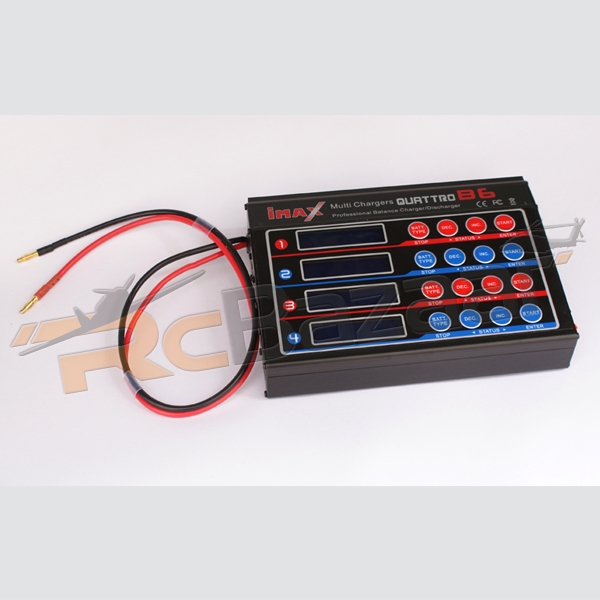

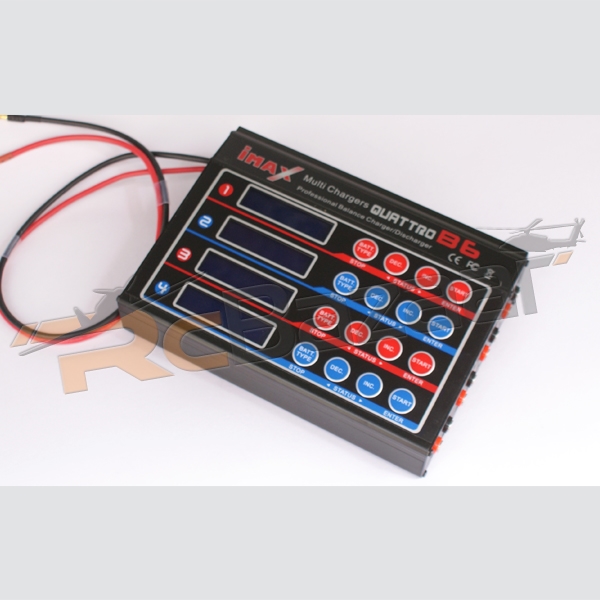

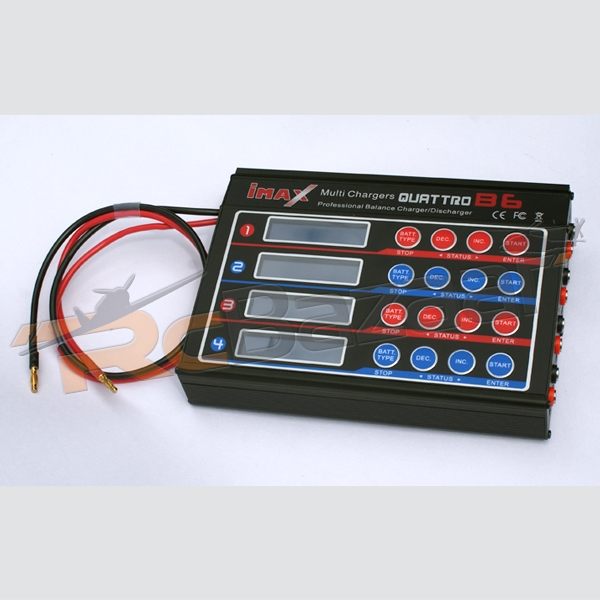

Quattro 4 in 1 Charger
SKU: RZ00775
Current rating is 0.00. Total votes 0.
Specifications
● Input Voltage Range: DC 11-15.0V
● Maximum Charge Power: 50W each channel
● Maximum Discharge Power: 5W each channel
● Cell Count: 1-6 LiPo/Li-ion/LiFe cells, 1-15 NiCd/NiMH cells, 1-10 lead acid cells (2-20V)
● Current Drain for Balancing Lithium cells: 300mA
● Charge Termination: NiCd/NiMH, automatic delta peak detection, Lead Acid & Lithium, automatic voltage-dependent, CC-CV process
● Dimensions: 8.9 x 6.2 x 2.4 (225.4 x 158.6 x 62.4mm)
● Net Weight: 2.4lbs (1.09kg)
● Package Weight: 1.5 Kg
Features
● Charges up to four batteries of different chemistry simultaneously. Charges 1-6 cell LiPo Li-Ion and LiFe batteries, 1-15 NiCd and NiMH cells and 1-10 cell lead acid batteries Individual lithium cell voltage balancer at each charging port Each charging port delivers 50W of power Charge cycle for lithium batteries can be speeded up to reduce charge time or lengthened to increase battery storage life Delta peak sensitivity Data storage for up to five different batteries PC connection via USB port allows viewing charge and discharge curves, voltage, temp & amps, individual curves can be suppressed or superimposed for a visual comparison of data Dual fan cooling system USB port also provides 5V/1A continuous current(USB adapter not included and mustb be purchased separately)
Package content:
● 1 no: Quattro 4 in 1 Charger
