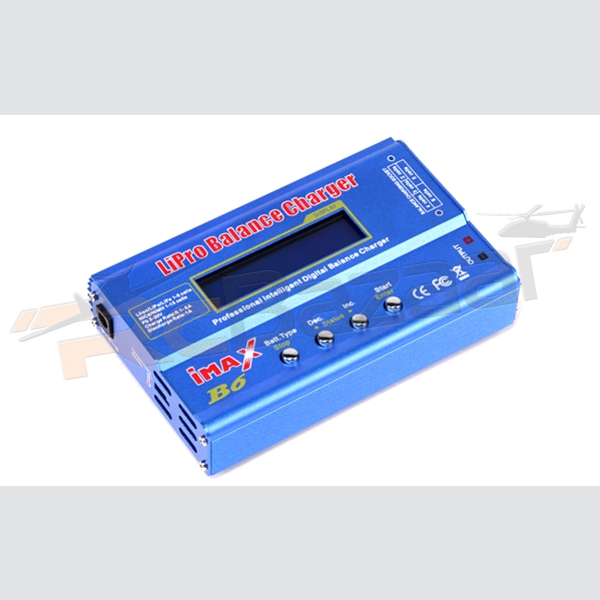

IMAX B6 DC Charger
SKU: RZ05380
Current rating is 0.00. Total votes 0.
The IMAX B6 (copy) is an advanced field charger that can balance and discharge LiIon, LiPoly, LiFe (A123), NiCd and NiMH batteries. The charger is microprocessor controlled and can balance individual cells in your Li-XX batteries. The charger can charge from 0.1 to 5.0A and is capable of charging packs up to 6S.
The charger features input voltage protection so it will not flatten your car battery in the field and will also storage charge your packs when you are not using them. The charger can be powered with any power supply that can deliver 11~18V.
Specification
●Input Voltage: 11~18v
● Circuit Power: Max Charge: 50W / Max Discharge: 5W
● Charge Current Range: .1~5.0A
● Discharge Current Range: .1~1.0A
● Ni-MH/NiCd cells: 1~15
● Li-ion/ LiPoly Cells: 1~6
● Pb Battery Voltage: 2~20v
● Weight: 277g
Features
● Microprocessor controlled
● Delta-peak sensitivity
● Individual cell balancing
● Li-ion, LiPo and LiFe capable
● Ni-Cd and NiMH capable
● Large range of charge currents
● Store function, allows safe storage current
● Time limit function
● Input voltage monitoring. (Protects car batteries at the field)
● Data storage (Store up to 5 packs in memory)
● Battery break in and cycling.

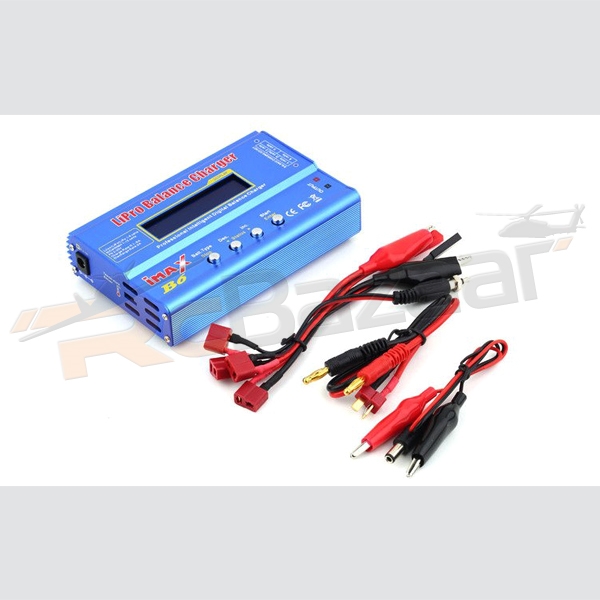

Package content:
● 1 no: IMAX B6 DC Charger
