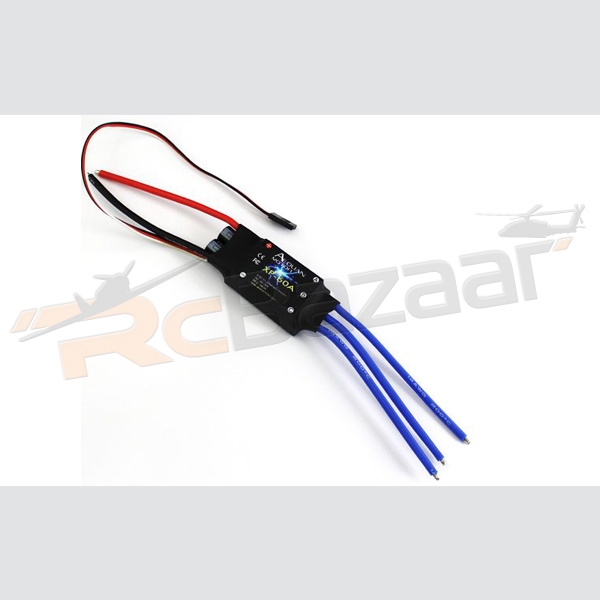

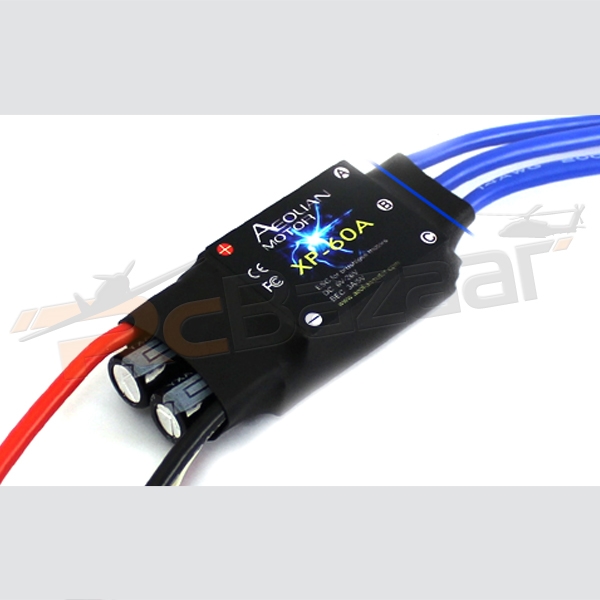

Aeolian 60 Amp ESC

SKU: RZ05238


Current rating is 0.00. Total votes 0.
Bookmark and Share Share this :
Specification:
● Equipped with high-speed, small-sized, multifunctional MCU.
● Full protection feature including low-voltage protection, over-heat protection, signal lost protection, safe power on protection.
● Excellent startup performance, great throttle linear and quick throttle response,excellent low-speed performance.
● Max speed: 240,000 RPM (2 poles), 80,000 RPM (6 poles), 40,000 RPM (12 poles).
● Individual power circuit for MCU and BEC to improve anti-interference capacity.
● The parameters of ESC can be configured via transmitter.
● Throttle range can be configured to be compatible with different receivers.
● Input voltage: 5.5V-26V (support 2-5S lithium batteries)
● Continue current: 60A
● Burst current: 80A (within 10 seconds)
● BEC output: 3A/5V (linear)
● Weight: 50g

Package Contents:
● 1 no: Aeolian 60 Amp ESC
