Description:
● Display resolution: VGA 640x480RGB, 922k pixel color display
● Field of view: 32o diagonal
● Virtual image size: 48 inches diagonal at 2m
● Wireless receiver frequency: 2.4G Hz 8-channel,5.8GHZ 8-channel
● Antenna connector: RP- SMA
● Power supply: 8-13V, 300mA
● Weight:158g (goggle only)

Channels
● 2.4G : 2414,2432,2450,2468,2370,2390,2490,2510MHZ
● 5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ

Feature:
● This FPV system consists of two modules,Video camera and transmitter module:
● On the plane model, a video camera and an video transmitter are installed; the video camera has an electrical pan-tilt that can move upward, downward, leftward and rightward according to the glasses’ head tracking signals received by R/C receiver.

Reception and display module:
Built in a wireless AV receiver and a virtual large screen real-time image display. The glasses and the R/C remote controller are connected via a data cable. The R/C remote controller supplies power for the glasses via the data cable while the glasses send the output signals of the head tracker to the R/C remote controller; then the remote controller transmits in wireless manner the head tracker signals and model control signals together to the R/C receiver on the model; the videos and audios taken by the video camera on the model plane; then the glasses can receive the video and audio signals transmitted from the model plane within certain distance.The operator wearing glasses can view images from the virtual display in the glasses and hear sound from the headset in the glasses. With this FPV system, the operator can have virtual flying experience.

R/C Device Compatible with FPV System.
Supports FUTABA FF-7, FF-8, FF-9,T9Z, T12MZ and T14MZ

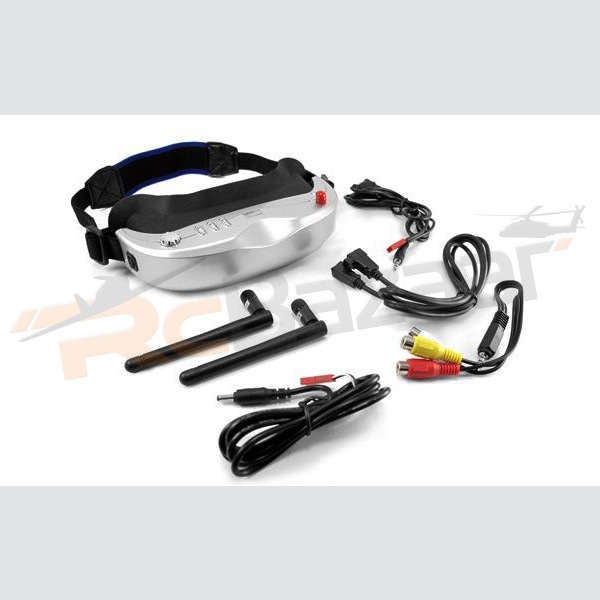

Package includes:
● 1 x Boscam GS920 Glasses
● 1 x Data cable
● 2 x Antenna
● 1 x Shade
● 1 x AV cable
● 1 x Elastic Bandage
