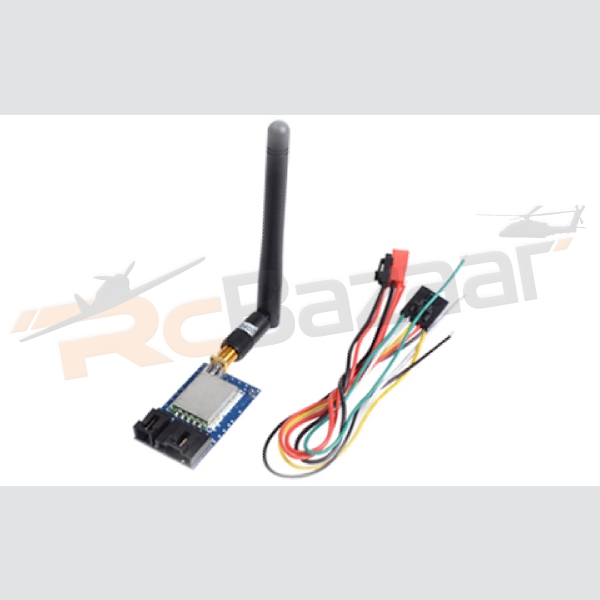

This 5.8G 10mW 8 channel video transmitter is very small and light (25g) so it is ideal where size and weight is an issue, the stock range in open area's is approximately 150m however adding one of our low cost circular polarized antenna will greatly improve range and video clarity.

This video transmitter is a great solution for those looking for a low power FPV system to comply with power output restrictions in some regions.

Features:
• 5.8G Technology 5645mhz~5945mhz
• 8 Channel Selectable
• Excellent Value for Money

Specification:
Video Format: NTSC/PAL
Output Impedance: 50ohm
Output Power: 9~11 dBm
Operating Voltage: 7~12V
Supply Current: 110~130mA
Operating Temperature: -10~+85C
Video Band Width: 0~8mhz
Audio Carrier Frequency: 6.5mhz
Video Input Level: 0.8~1.2Vp-p
Video Input Impedance: 75ohm
Audio Input Level: 0.5~2.0Vp-p
Audio Impedance Level: 10Kohm
Antenna Connector: RP-SMA
Weight: 25g
Dimensions: 42 x 26 x 8mm

Included:
1 x 5.8G Transmitter
1 x Antenna
1 x Power Cable
1 x AV Cable

** Many fake, poor quality & untested FPV products are currently entering the market. Don’t get caught out with poor quality substitutes, Boscam FPV equipment is tried and true and has been tested and developed by FPV pilots for FPV pilots.
