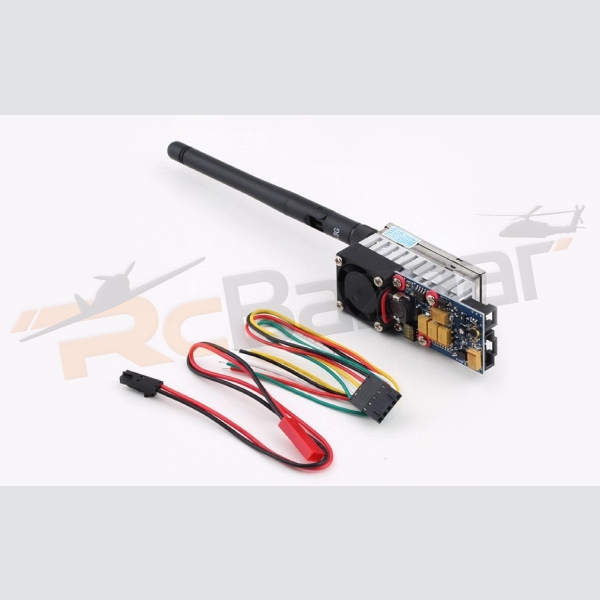

This 5.8G 500mW 8 Channel AV Transmitter features a high power output for longer range with your FPV models. With its audio/video inputs and video output, this is a great unit for use with your FPV/OSD system. It also offers a compact size with built in heatsink and cooling fan to ensure your components stay cool.

Features:
* 5.8G Technology 5645MHz~5945MHz
* Built-in microphone audio pick up device
* 8 Channel selectable

Specs:
* Video Format: NTSC/PAL
* Output Impedance: 50 Ohm
* Output Power: 26~28 dBm
* Operating Voltage: DC 7~15V
* Supply Current: 500mA
* Operating Temperature: -10~+85 °C
* Audio Carrier Frequency: 6.5MHz
* Video Input Level: 0.8~1.2 Vp-p
* Video Input Impedance: 75 Ohm
* Audio Input Level: 0.5~2.0 Vp-p
* Audio Input Impedance: 10K Ohm
* Antenna Connector: RP-SMA
* Dimensions: 69 x 26 x 28mm
* Weight: 66g (w/antenna)
* 5800MHz 500mW TS352 Wireless Video Audio AV Sender Channels & Frequencies
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
* Compabible with the True 640x480 2.4ghz and 5.8ghz FPV goggles and the RC305 and RC805 5.8Ghz receivers.


Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX

Included:
1 x 5.8G 500mW transmitter
1 x Stock dipole whip antenna
