Small size, High accuracy, Fast communication rate

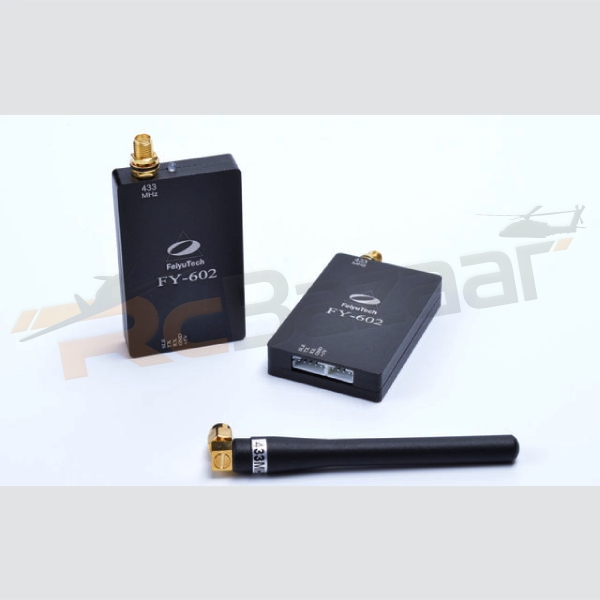

FY-602 Wireless data radio is a high stability, low power wireless micro power transmissive transmission station, which launched by FeiyuTech.
It uses 433/915 MHz frequency band and multi-channel communication, which reduces signal interference during transmission and improves transmission performance.
The data radio has the advantage of small size, high accuracy and fast communication rate, provides more efficient choices for more industries.
Use 433/915Mhz frequency band.
Transceiver integration, half duplex, data conversion completed automatically
The baud rate is in the range of 1200~38400 bps.
Low power consumption, the transmission power is in the range of 5~360Ma, receive current <45mA, sleep current <1 mA
Applied to wireless meter reading, electronic communication, PTZ control, automatic control, freight yard logistics, etc.
Transparent data transmission, can transmit longer data frames.
The transmission power has 7 level and is adjustable. The transmission range is controllable
Using GFSK modulation, the transmission distance is in the range of 3km-8km
Automatically filter out false data generated in the air, it’s reliable and stable in long-term use.
Support the electrical level interface of TTL/RS485/RS232, you can choose according to your needs.
FeiyuTech newest 602 data radio with transmission distance of 3-10km for uav plane

Working frequency                             : 433/915MH
Transmission current                          : < 360 mA
Transmission power                           : < 500mw
Receive sensitivity                              : -123 dBm
Communication distance                     : 3-8km
Receive current                                 : < 45 mA
Modulation mode                               : GFSK
Communication baud rate                   : 19200 bps (adjustable)
Working voltage                                : DC 5 v
Product power consumption               : <1
Storage temperature                         : -20 ℃ ~ 45 ℃
Storage humidity                               : -20 ℃ ~ 45 ℃
Working temperature                        : 5 % ~ 60 %
Working humidity                             : 5 % ~ 55 %
