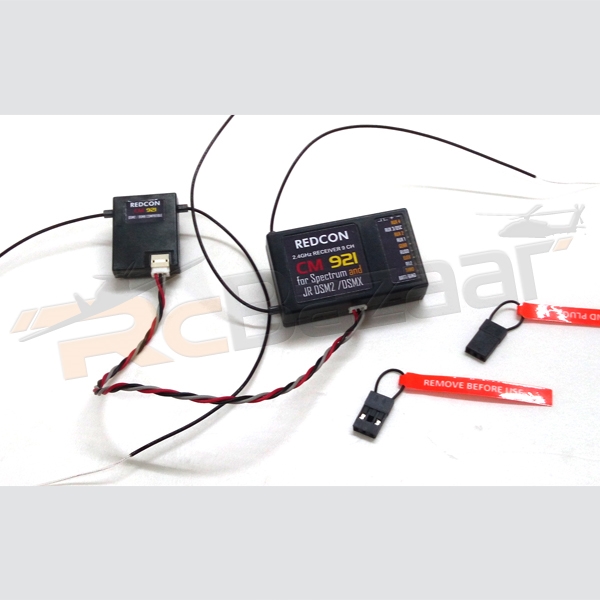

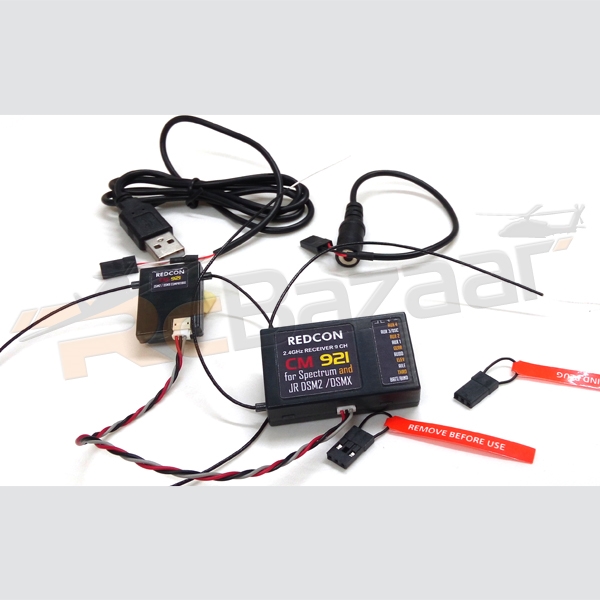

REDCON 9CH DSM2 receiver & satellite
SKU: RZ04876
Current rating is 0.00. Total votes 0.
Specifications
● Channel: 9CH
● Material: Plastic
● Modulation: DSM2/DSMX
● Dimension: 50 *30*13mm
● Weight: 14g
● Voltage: 4-10V
● Receiving Antenna Length: 30mm
● Range: 800-1000m(test with JR DSX9)
Features
● The CM921 is composed of an internal and an external receiver,using dual channel radio frequency hopping technology.
● Compatible with all the Spektrum and JR 2.4G transmitter
● Support the default type all channel protection function
● Wireless simulator interface(W.D.S.C),support REFLEXTR,G3,G4,G5 fly simulator
Binding Procedure:
● Step 1. Put the binding harness into connector location marked BIND. Next apply power to the receiver. Both receiver and Satellite LED's should illuminate.
● Step 2. To set fail-safe throttle and control surface positions, (minimum throttle with and all control surfaces set to neutral is suggested). Press the bind button (LED will illuminate). Turn on the transmitter.
● Step 3. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the LED of both satellite and main receiver will illuminate solid. All fail-safes should be programed correctly now.
● Step 4. Remove binding harness from the BIND channel. Restart the receiver by cycling it's power off and back on. All channels should function properly now. You may test fail-safe by holding sticks in corner, cycle transmitter off. Surfaces and throttle should return to your preset fail-safe positions set in.
Package Include:
● 1no: REDCON 9CH DSM2 receiver & satellite
● 2no: Bind plug
