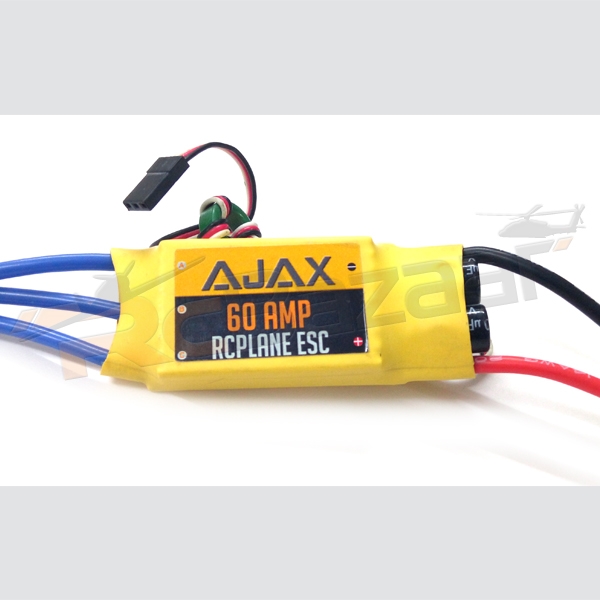

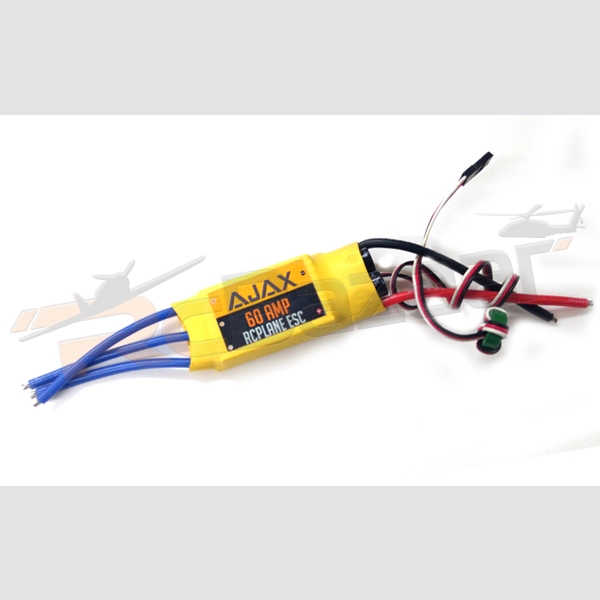

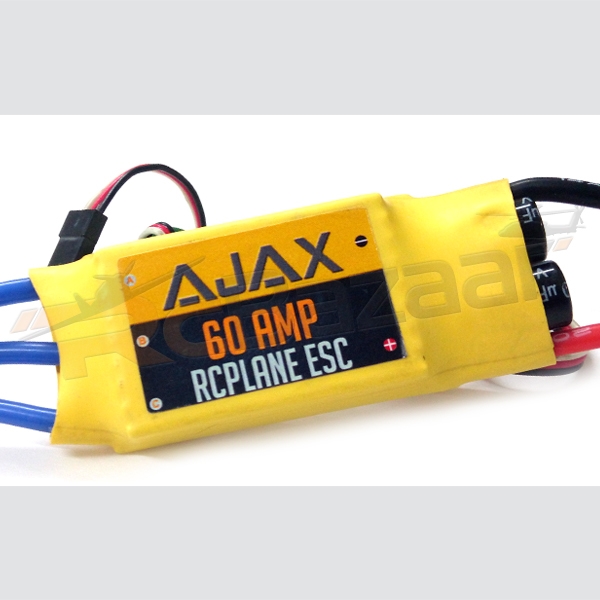

AJAX Airplane 60A YELLOW ESC
SKU: RZ05041
Current rating is 0.00. Total votes 0.
Package Content:
● 1 no: AJAX Airplane 60A YELLOW ESC
Features:
• Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
• Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters
• Programmable Items:
1. Brake Setting: Enabled / Disabled
2. Battery Type: Lipo / NiMH
3. Low Voltage Protection Mode: Soft Cut-off (Gradually reduce the output power) / Cut-off (Immediately stop the output power)
4. Low Voltage Protection Threshold: Low / Medium / High
5. Start Mode: Normal / Soft / Super Soft
6. Timing: Low / Medium / High
7. Restore Factory Default Setting
4. Full Protections:
• Low Voltage Cut-off: Setting by program
1. Over-heat Protection: The output power will automatically reduce.
• Select electrolytic capacitor with low resistance, strong anti-interference ability.
Specification:
• Output: Continuous 60A, Burst 70A up to 10 seconds.
• Input Voltage: 2-16 Lipo 6-18 cells NiMH
• Refresh rate of the throttle signal: 50Hz – 621Hz
• Size: (L*W*H)
