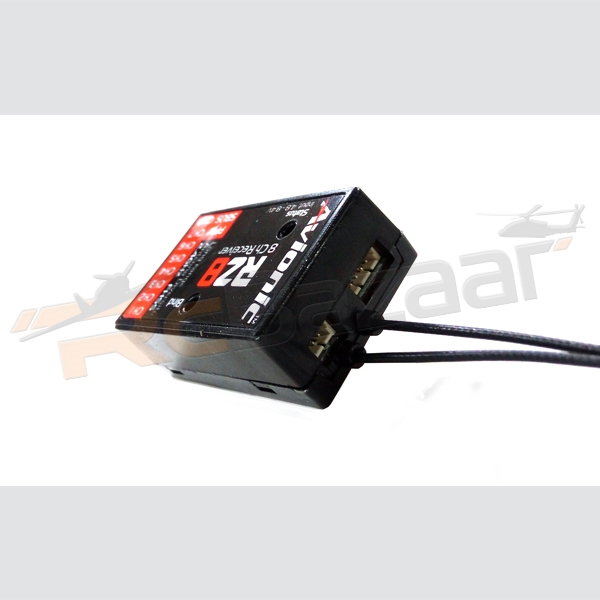

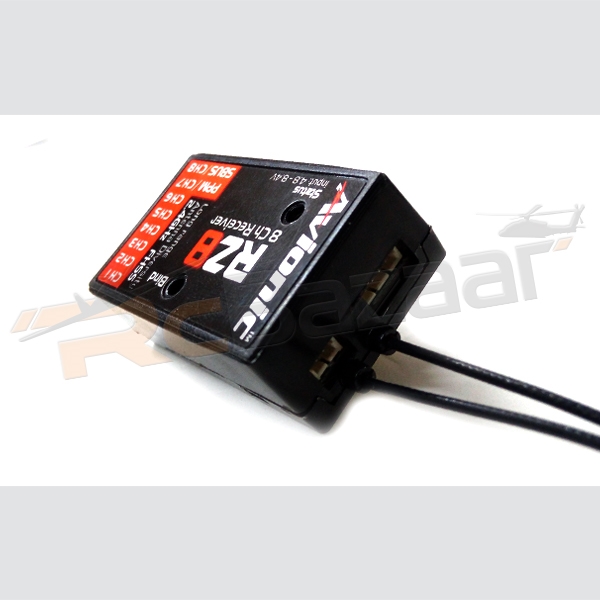

This is a 8 channel receiver for our Avionic range of radios. This receiver is a FHSS full range 2.4Ghz receiver comes with a dual antenna which provides a bullet proof connectivity to your Avionic Transmitters. Another added feature is the inclusion of Sbus into this receiver. If you are a person who likes your wiring neat and clean in your model than plug in your SBus servos to this receiver and go fly.
The RZ8 receiver taken in high voltage inputs up to 8.4V which means your HV servos can now be fixed to this receiver and you can fly your larger gasser or glow engines planes using this reciver.
Specification:
● 8CH + 1 PPM + 1SBus
● 2.4GHz FHSS full range
● Integrated fail safe provided
● Input voltage 4.8V to 8.4V
● Reverse polarity protected
● Size 38.9 x 12.8mm
● Weight: 10g
Works only on Avionic transmitters and modules

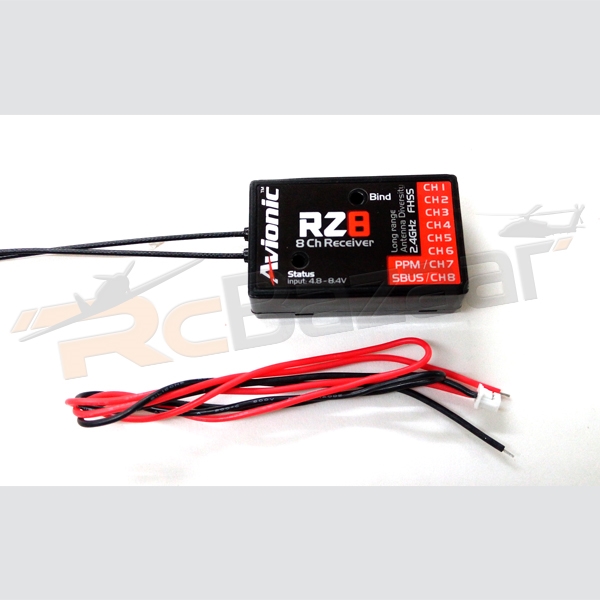

Package content:
● 1 no: RZ8 full range 8CH receiver with SBUS
User instructions for the RZ8 receiver

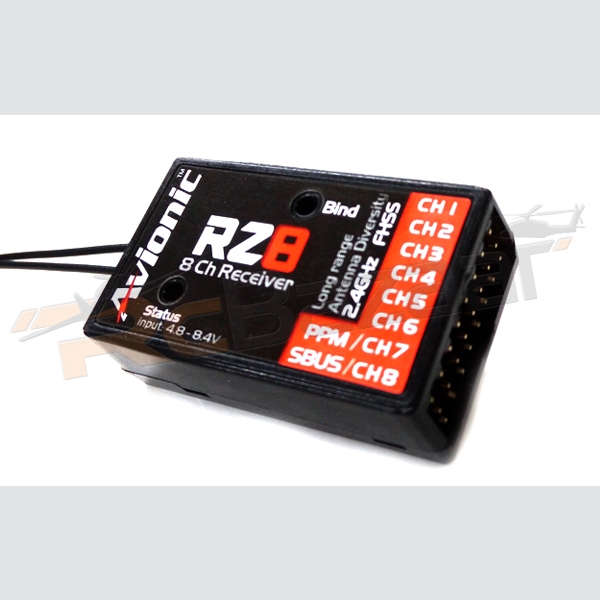

1. There is one RED and BlueLED on the receiver
2. After you supply power to RZ8 receiver,the RED LED will flash low pulses if it does NOT recognize signal BUT after it gets signal from the Avionic transmitter, the RED LED will be steady ON.
3.Binding process: The RZ8 receiver will flash in low pulses if it does NOT recognize signal from the Avionic transmitter. Now press and hold the BIND button for 1 second, The RED LED will start flashing quickly, it means the receiver has got in bind state and is ready for the Avionic transmitter to bind.
At this point of time take your Avionic transmitter and place it into Bind mode, the receiver will get bound and the RED LED will be steady.
Repeat this process if the RX / TX does not bind for thefirst time.
4.Fail safe set up: The RZ8 receivers after getting bound to the Avionic Transmitter shows the RED LED in a steady ON model. Now to set the Fail-safe, move your desired channels to the preset position you want during Fail safe and once done press and hold the Bind button for 1 second.
Now the BLUE LED will flash 3 times, it means it had operated the the fail safe and now the RZ8 receiver will remember the channel value you have set up will act upon to this values during fail safe. To remove the Failsafe as the output value use the same process and the BLUE LED will flash 1 time and this means the fail safe is turned OFF.

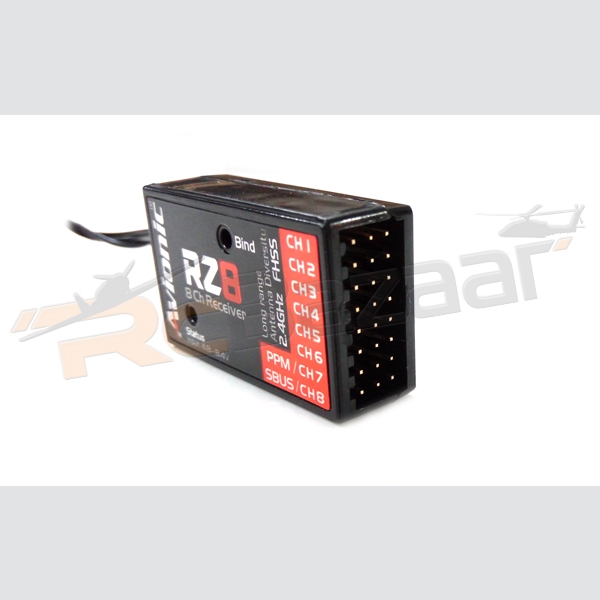

5.Output switch mode: The receiver has two output modes which is shows with the BLUE LED.
Mode one: If the BLUE LED is in OFF state then the CH1 output is ch1, CH2 output is ch2,....... CH8 output is ch8.
Mode two: Blue If the BLUE LED is in ON state then, CH1 output ch1, CH2 output ch2,..... CH7 output is S.BUS, and CH8 output is PPM.
