Introducing Avionic series of brushless motors.
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RMP and are made for RC controlled models only and will last for more than what your RC model asks for.
Specification:
● Shaft Diameter: 8 mm
● Motor Kv: 380 RPM / Volt
● Resistance (mΩ): 27
● Persistent Current: 80 Amps n Power: 1665W
● Reactive Current: 2Amps
● Maximum Current: 9A
● Input voltage: 11.1 - 29.6V n Max Efficiency: 98%
● Motor Weight (Motor Only): 280g
● Propeller Dimensions: 16x8 / 16x10 / 17x9
● Motor Dimensions (Diametre x Length): 65mm x 50mm
Package content:

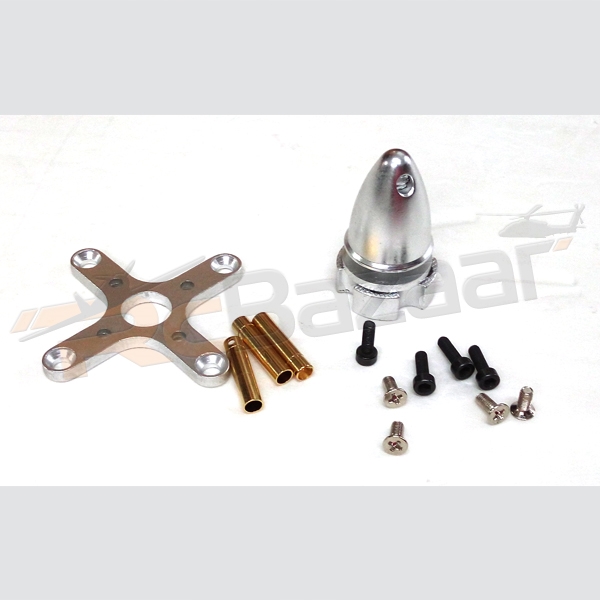

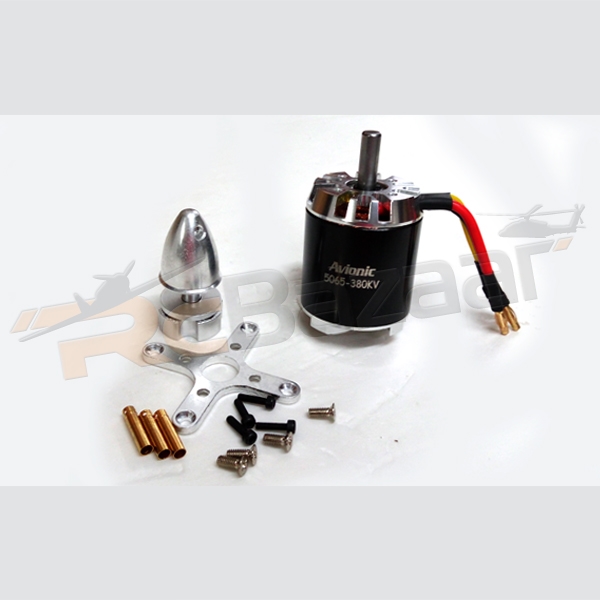

● 1 no: Avionic C5065 KV380 brushless motor and accessories as shown in picture
LOAD TEST REPORT
| Voltage (V) |
Prop |
Pull (Gms) |
Current (Amp draw) |
ESC |
| 22.2 |
14x7 E |
4780 |
41.5 |
80A |
| 22.2 |
15x6 E |
5830 |
53.3 |
80A |
| 18.5 |
15x8 E |
4426 |
46.3 |
80A |
| 18.5 |
16x8 E |
4810 |
56.5 |
80A |
| 18.5 |
17x10 E |
5410 |
73.4 |
100A |
|
|
|
|
|
