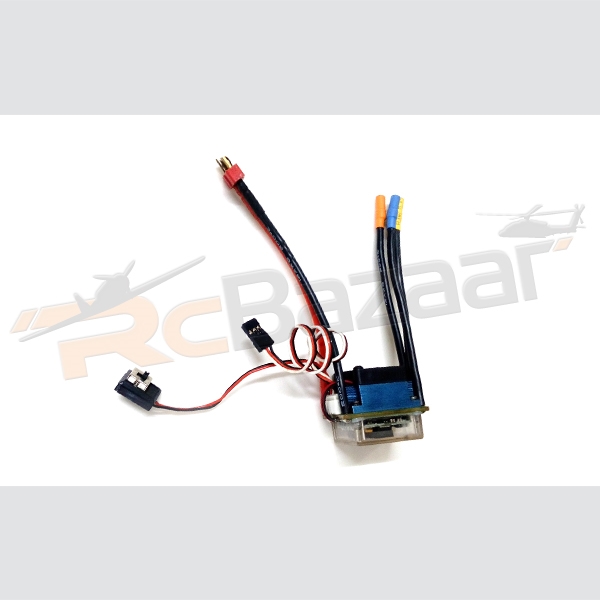

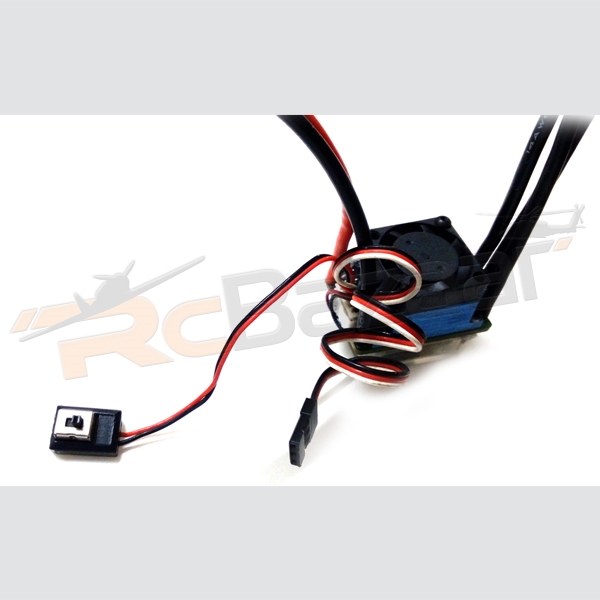

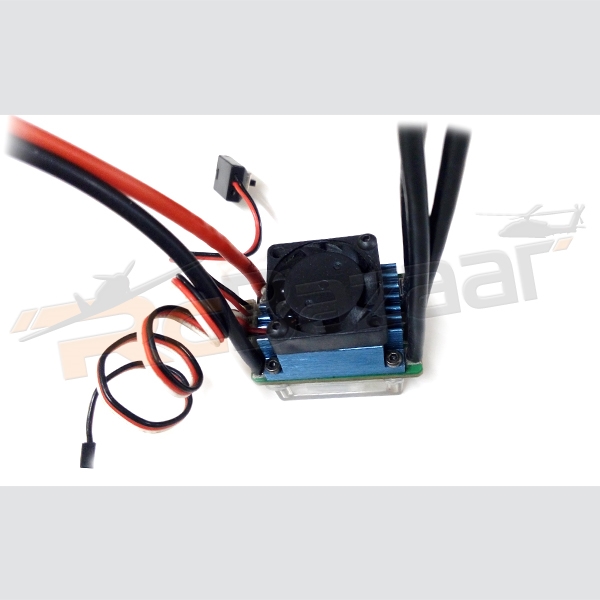

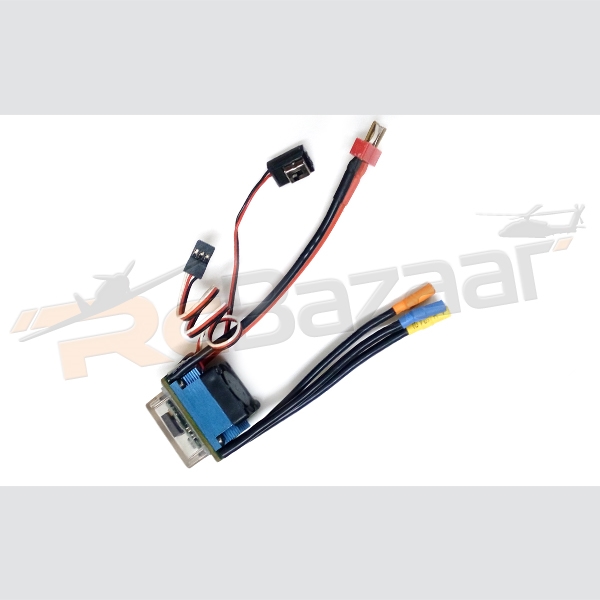

eZRun 35A Brushless ESC for RC car
SKU: RZ05004
Current rating is 0.00. Total votes 0.
The EZ-RUN series boasts features such as large burst currents, programmable breaking and reverse, low resistance, 2-3 Lipo cell capable and low weight.
Specificaton:
• Output: Continuous current 35A, burst current 190A.
• nput: 4-9 cells NiMH/NiCd or 2-3 cells LiPo.
• BEC Output: 6V/1.5A.
• Resistance: 0.0015 Ohm.
• Motor Supported: Sensorless Brushless Motor
• Suitable Brushless Motor:
• With 4-6 cells NiMH/NiCd or 2 cells Lipo: On-Road≥9T, Off-Road≥12T
• With 6-9 cells NiMH/NiCd or 3 cells Lipo: On-Road≥12T, Off-Road≥18T
• Suitable Car: 1/12, 1/10 on-road or off-road cars / trucks for normal race or sportful race.
• Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
• Weight: 30g(Without wires)
Features
• Compatible with all sonsorless brushless motor.
• Use top quality electronic components to enhance the current endurance ability of the ESC.
• Excellent start-up, acceleration and linearity features.
• With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode.
• With 4 steps of maximum reverse force adjustment.
• Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
• With 9 start modes (Also called "Punch" ) from "Soft" to "Very aggressive" to suitable for different tracks.
• Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
• With 8 steps of timing adjustment to get the best compatibility with various of motors.
• Easily program with only one button and compatible with pocket-sized program card.
Package Content:
● 1 no: eZRun 35A Brushless ESC for RC car
