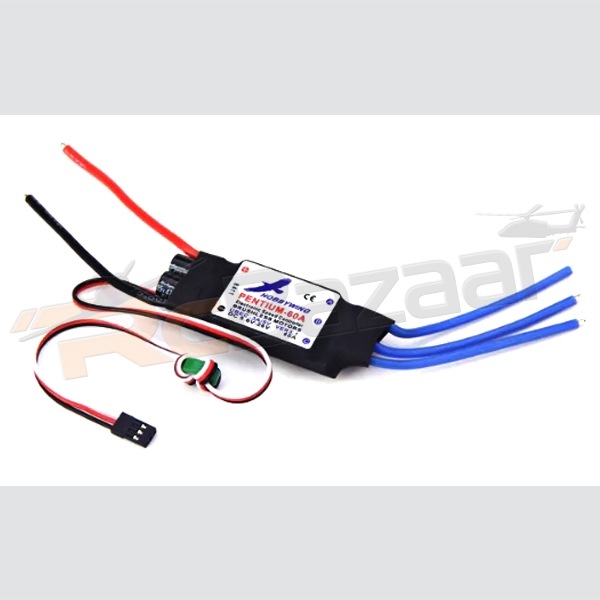

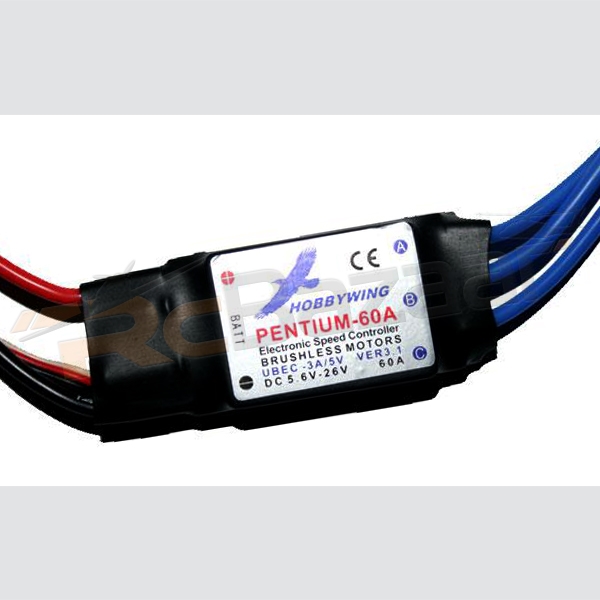

Hobbywing Pentium 60A ESC (clone)

SKU: RZ05003


Current rating is 0.00. Total votes 0.
Bookmark and Share Share this :
Specificaton:
•
Hobbywing Pentium 60A Brusheless ESC With UBEC
• UBEC: yes Output:
• Continuous 60A, Burst 80A up to 10 seconds.
• Input Voltage:  2-6 cells lithium battery or 5-18 cells NiCd/NiMh battery.     Refresh rate of the throttle signal: 50Hz to 432Hz. Max Speed:  210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM(BLM = BrushLess Motor) Weight: 63g.

Features:
• With UBEC Safety arming : Regardless the throttle stick position, the motor will not spin after battery connected.
• Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.  User programmable.
• Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field. Compatible with Lipo battery and NiCd/NiMH battery. Internal timing can be changed to be suitable for different brushless motors.
• Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection. Extreme low resistance PCB is used at the power output section, the whole ESC has super current endurance capability. Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

Package Content:
● 1 no:
Hobbywing Pentium 60A ESC
