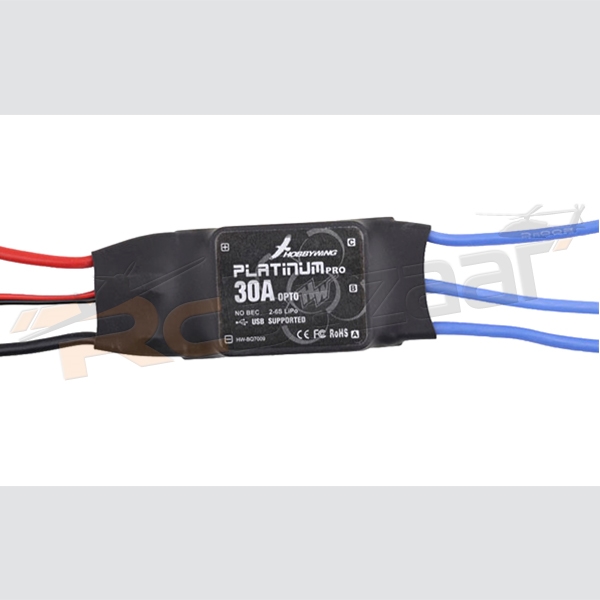

Hobbywing Platinum 30A Pro 2-6S ESC OPTO
SKU: RZ04803
Current rating is 0.00. Total votes 0.
Features
● Profit Technology latest multi-rotor aircraft designed for multi-rotor aircraft research and design, a number of optimization.
● Use a high-performance processor, has excellent compatibility and high motor drive efficiency. The maximum speed of the motor can reach 210000
● RPM (2-pole motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor).
● Ordinary start / soft start / super soft and start" the three start up mode, compatible with fixed-wing aircraft and helicopters.
● You can set the throttle, compatible with all commercially available remote control. Possess a smooth, delicate the governor feel, class speed linear
and extremely fast throttle response speed.
● Microprocessor uses separate voltage regulator IC, with better anti-interference ability, greatly reducing the possibility of out-of-control.
● With input voltage abnormal protection / battery low voltage protection / over-temperature protection / throttle signal lost protection "multiple
● protection features, effectively extending the life of the ESC.
● Built-in BEC output voltage between 5.25V and 6V through software switch.
● Support for fixed speed function.
● Can be used with a variety of programmed card (Note:Optional) Use the programming card has a simple and intuitive interface, easyto you anywhere
● modify the variousprogramming parameters (see set card manual).
● Through the USBinterface the programmed card on the the ESC software upgrade, allows you toenjoy the latest ESC permanently.
● Full use ofauthentic materials to ensure that products with first-class quality and stableperformance.
Specifications
● Size: 56.5 * 25.6 * 8mm
● Continuous Current: 30A
● Instantaneous maximum current: 45A (10 sec.)
● BEC output: no
● The applicable number of battery cells:2-6S
● Nickel-metal hydride battery :5-18S
● Parameter programming function
Package Includes:

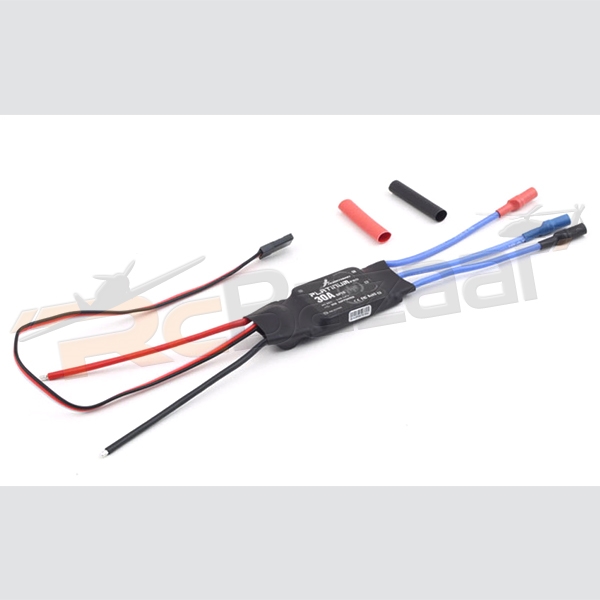

● 1 no: Hobbywing Platinum 30A Pro 2-6S
