Features:
● 168 MHz / 252 MIPS Cortex-M4F
● 4 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
● Abundant connectivity options for additional peripherals (UART, I2C, CAN)
● Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
● Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
● Redundant power supply inputs and automatic failover
● External safety switch
● Multicolor LED main visual indicator
● High-power, multi-tone piezo audio indicator
● microSD card for high-rate logging over extended periods of time

Specifications:
Processor
● 32bit STM32F427 Cortex M4 core with FPU
● 168 MHz
● 256 KB RAM
● 2 MB Flash
● 32 bit STM32F103 failsafe co-processor

Sensors
● ST Micro L3GD20H 16 bit gyroscope
● ST Micro LSM303D 14 bit accelerometer / magnetometer
● MEAS MS5611 barometer

Interfaces
● 5x UART (serial ports), one high-power capable, 2x with HW flow control
● 2x CAN (one with internal 3.3V transceiver, one on expansion connector)
● Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
● Futaba S.BUS® compatible input and output
● PPM sum signal input
● RSSI (PWM or voltage) input
● I2C
● SPI
● 3.3 and 6.6V ADC inputs
● Internal microUSB port and external microUSB port extension

Power System and Protection
● Ideal diode controller with automatic failover
● Servo rail high-power (max. 10V) and high-current (10A+) ready
● All peripheral outputs over-current protected, all inputs ESD protected

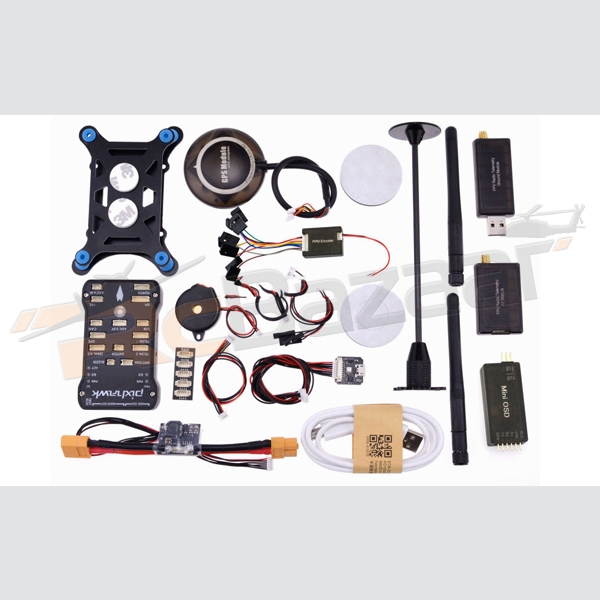

Package Includes:

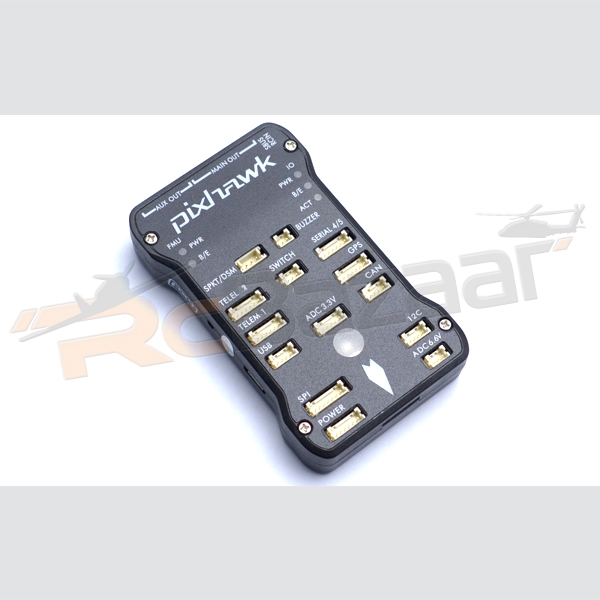

● 1 no: PX4 V2.4.7 Flight board  (with origianl DF13 connector )
● 1 no: Shock absorber Board
● 1 no: safety switch
● 1 no: Buzzer
● 1 no: PPM Module
● 1 no: Pixhawk-I2C Splitter Expand Module

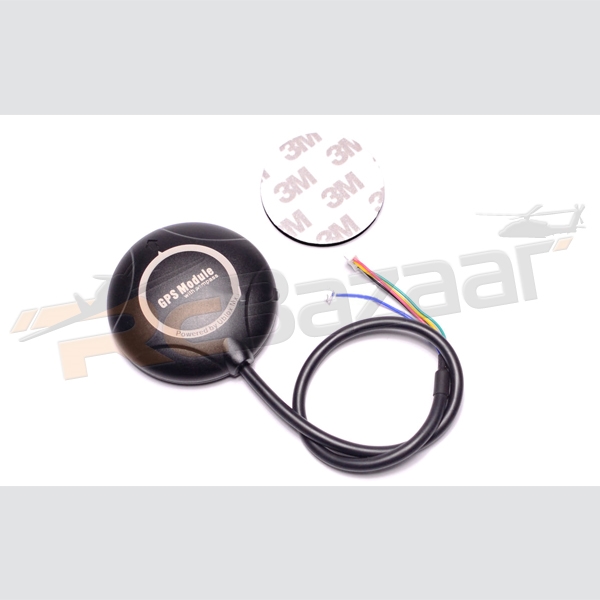

● 1 no: Neo-M8N Gps Module with gps holder

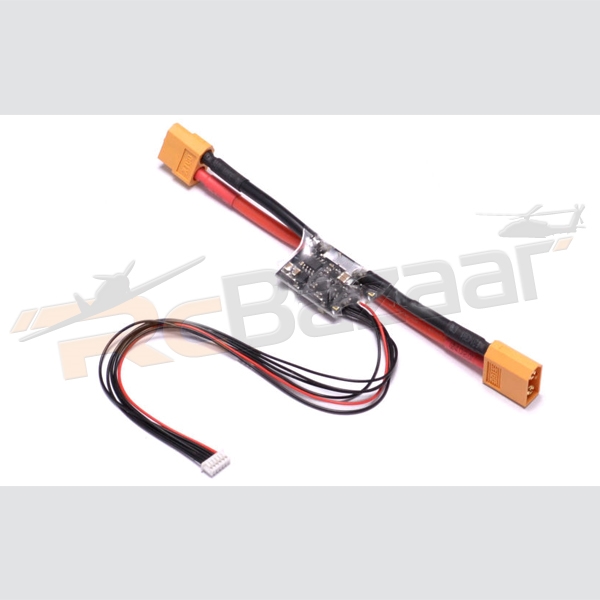

● 1 no: Power Module
● 1 no: RGB Module
● 1 no: Mini osd

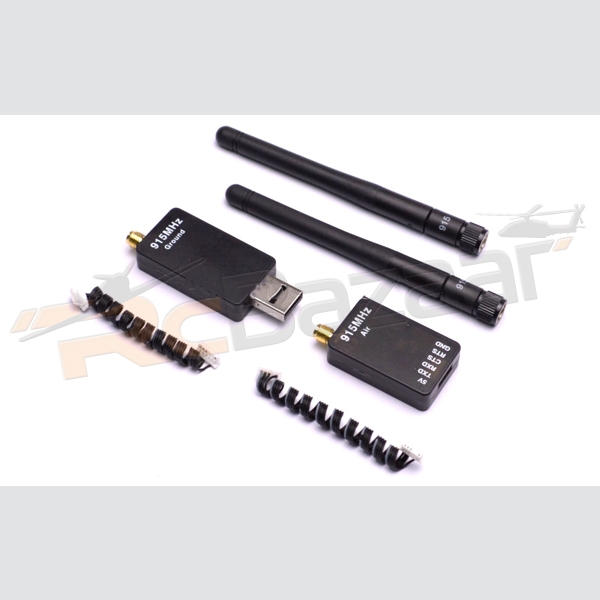

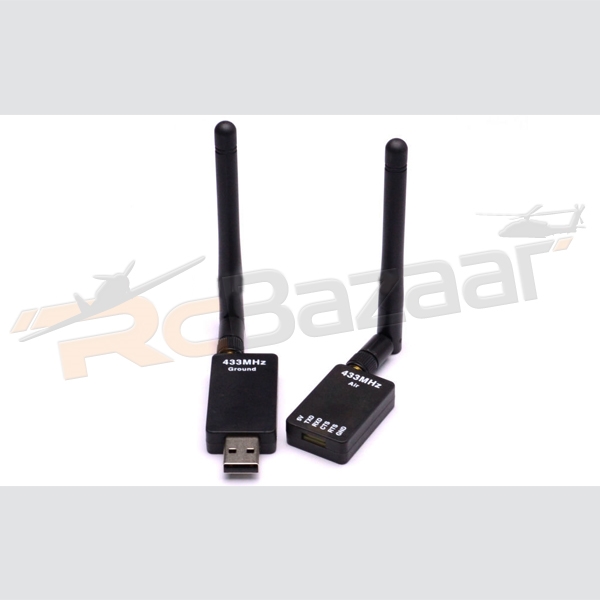

● 1 no: 433/915 Telemetry  (There are two kinds of case, we will send it at random)
● 1 no: USB Cables
