RcBazaar. Avionic S3536 - 880KV (CCW) quad motor

Avionic S3536 - 880KV (CCW) quad motor

SKU: RZ04838

Current rating is 0.00. Total votes 0.

View / Write review

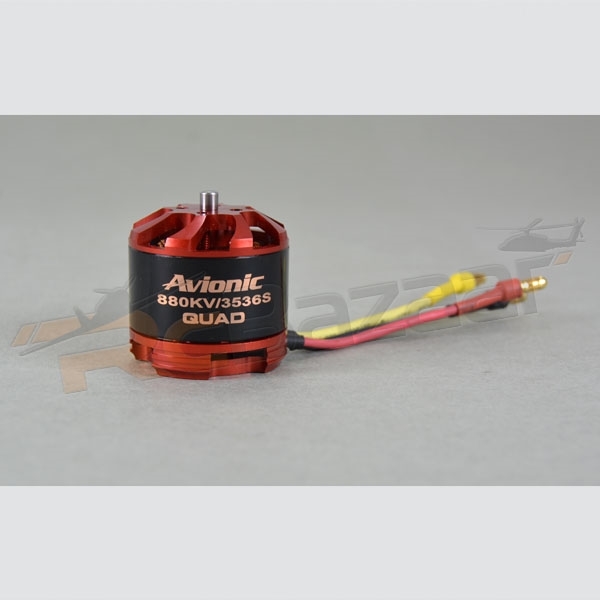

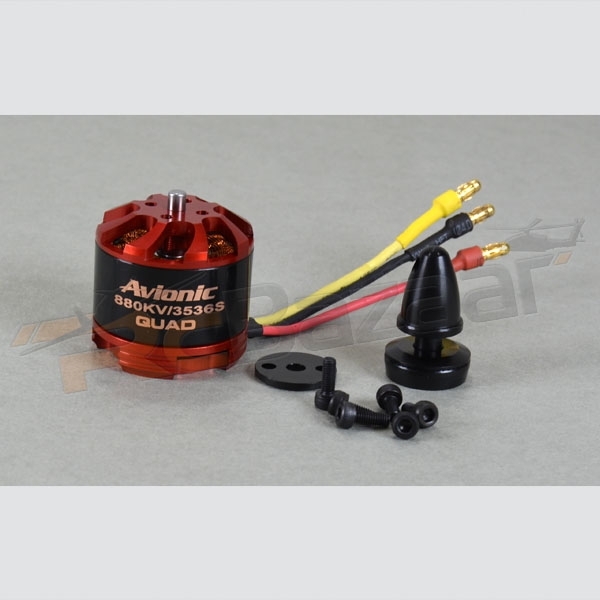

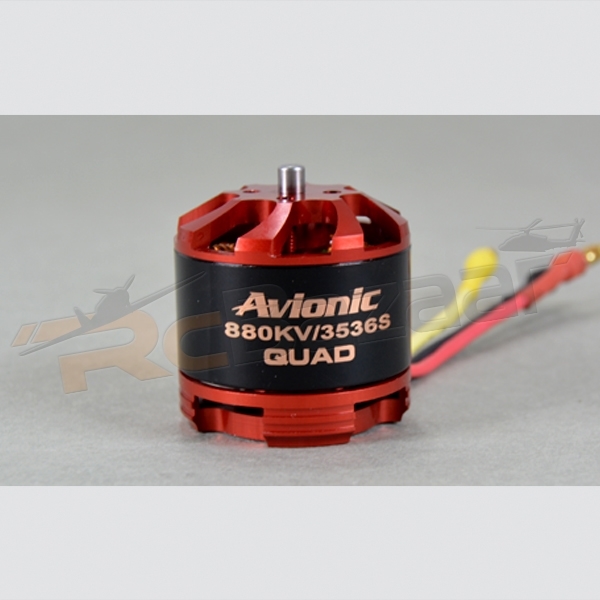

Introducing Avionic series of brushless motors. This is a unique design made specifically for Avionic Quads motor with a swirl top design and 8 gaps to allow the maximum cooling of the motor. A similar design you will not get in any other hobby store around you.

Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RMP and are made for RC controlled models only and will last for more than what your RC model asks for.

Specification:
● Stator Diameter: 28.0mm(1.102in)
● Stator Thickness: 14.0mm(0.551in)
● No. of Stator Arms: 12
● No. of Magnet Poles: 14
● Motor Wind: 9 Turn D
● Motor Kv: 880 RPM / Volt
● No-Load Current (Io): 0.7 Amps @ 10 volts
● Max Continuous Current: 30 Amps
● Max Continuous Power: 450 Watts
● Weight: 100 Grams(3.527oz)
● Resistance: 46m‎Ω
● Outside Diameter: 34.8 mm(1.370 in)
● Shaft Diameter: 4.0 mm(0.157 in)
● Body Length: 33.7 mm(1.327 in)
● Overall Shaft Length: 38.0 mm(1.496 in)
● Max LiPo Cell: 3-4 S
● Motor Timing: 5°
● Drive Frequency: 8kHz

This is a Counter Clockwise Avionic S3536 - 880KV quad motor
LOAD TEST REPORT

PROP	VOLTAGE	THROTTLE	CURRENT(A)	PULL(G)
10 x 4.7 Carbon prop	11.1	50%	4.6	430
		66%	7.3	600
		83%	12.3	890
		100%	16.1	1080
	12.6	50%	5.6	530
		66%	9.0	760
		83%	15.2	1100
		100%	20.0	1320
	14.8	50%	7	690
		66%	11.5	990
		83%	20	1460
		100%	24.8	1680
11 X 4.7 GF	11.1	50%	5	490
		66%	8.9	750
		83%	15.6	1130
		100%	20.5	1380
	12.6	50%	6.2	690
		66%	11.2	960
		83%	18.2	1350
		100%	24.6	1680
	14.8	50%	7.4	780
		66%	14.6	1240
		83%	23.2	1710
		100%	31.2	2090
12 x 3.8 AX	11.1	50%	5.8	560
		66%	12.5	940
		83%	21.5	1350
		100%	28	1630
	12.6	50%	7	680
		66%	15.5	1190
		83%	25.9	1630
		100%	34.5	1960
