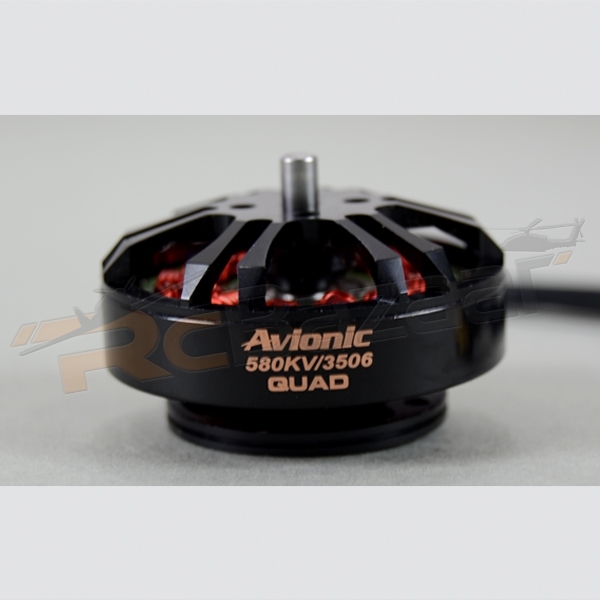

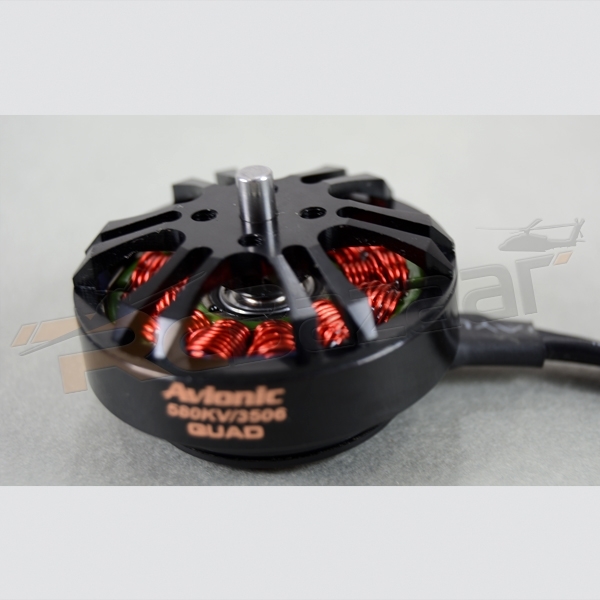

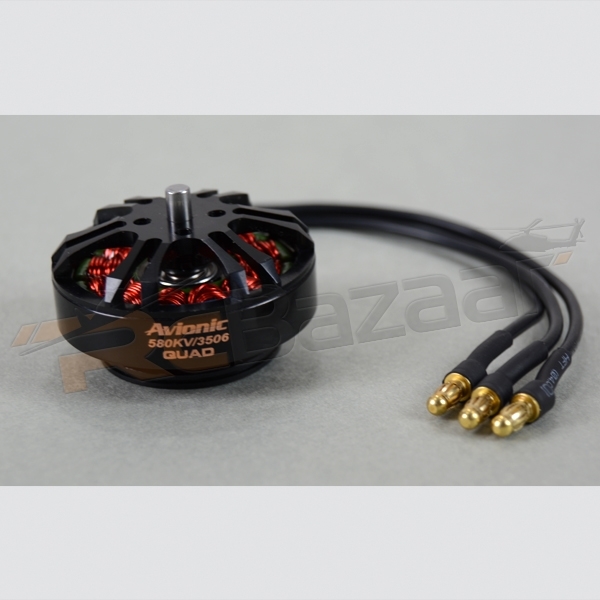

This is a Counter Clockwise Avionic 3506 - 580KV pancake quad motor
Looking for the ultimate power system for your next Multi-rotor project? Look no further!
The Avionic pancake outrunner motors are designed Multi-rotor efficiency. They are made of high quality bearings and the best magnets are each motor is perfectly balanced for smooth running, these motors are designed and engineered specifically for multi-rotor use.

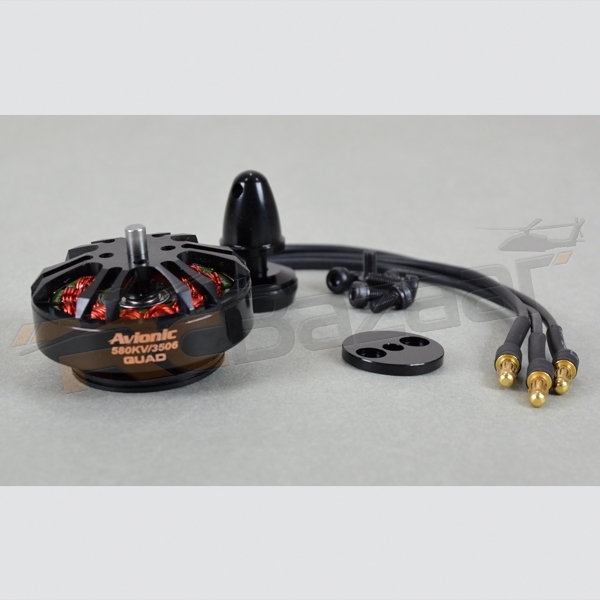

The Avionic 3506 - 580KV pancake quad motor includes a prop adapter. Do not use these motors for your airplanes unless its for a specific project.
Specification:
● NO-LOAD VOLTAGE 10 V
● NO-LOAD CURRENT 0.4 A
● NO-LOAD RPM 580 (kv) RPM/V
● RESISTANCE 163 mΩ
● WEIGHT 80g
● SHAFT DIA OF MOTOR 4MM
● OUTPUT DIA OF MOTOR SHAFT M6.0
● SUITABLE PROPS 10-13"
● SUITABLE Quads 450 TO 680 SIZED QUADS
● MAXIMUM CONTINUOUS CURRENT 11A
● MAX CURRENT 14A
● MAX EFFICIENCY 96%
● MAX POWER 300W
| LOAD TEST REPORT |
| PROPS |
VOLTAGE |
THROTTLE |
CURRENT(A) |
PULL(G) |
| 10x4.7C |
14.8 |
50% |
1.6 |
270 |
| 66% |
3.4 |
470 |
| 83% |
5.7 |
650 |
| 100% |
6.2 |
700 |
| 18.5 |
50% |
2.6 |
440 |
| 66% |
4.5 |
650 |
| 83% |
7.6 |
910 |
| 100% |
9.0 |
1010 |
| 11x4.7 GF |
11.1 |
50% |
2.1 |
340 |
| 66% |
4.2 |
570 |
| 83% |
6.7 |
782 |
| 100% |
8.1 |
891 |
| 14.8 |
50% |
2.9 |
501 |
| 66% |
5.8 |
833 |
| 83% |
10.0 |
1165 |
| 100% |
11.1 |
1230 |
| 12x3.8XA |
11.1 |
50% |
1.8 |
270 |
| 66% |
3.8 |
452 |
| 83% |
6.6 |
677 |
| 100% |
7.6 |
751 |
| 14.8 |
50% |
3.1 |
470 |
| 66% |
6.2 |
770 |
| 83% |
10.4 |
1077 |
| 100% |
12.1 |
1150 | |
