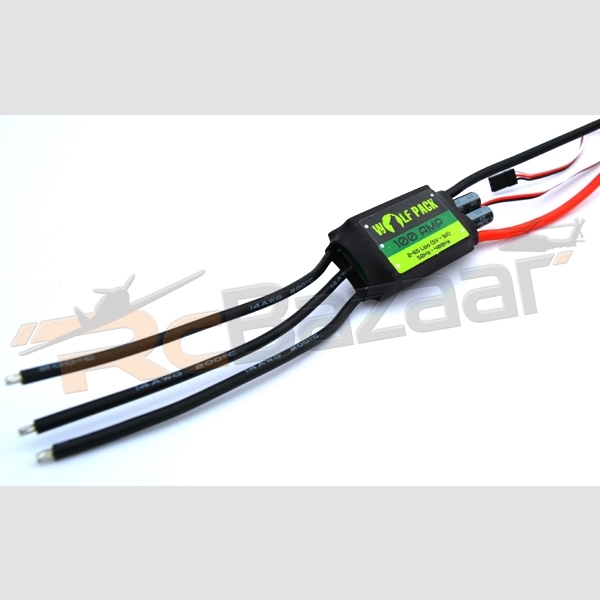

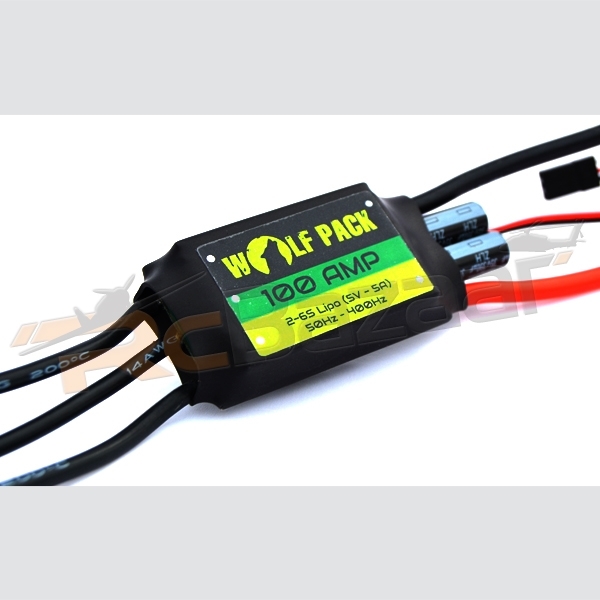

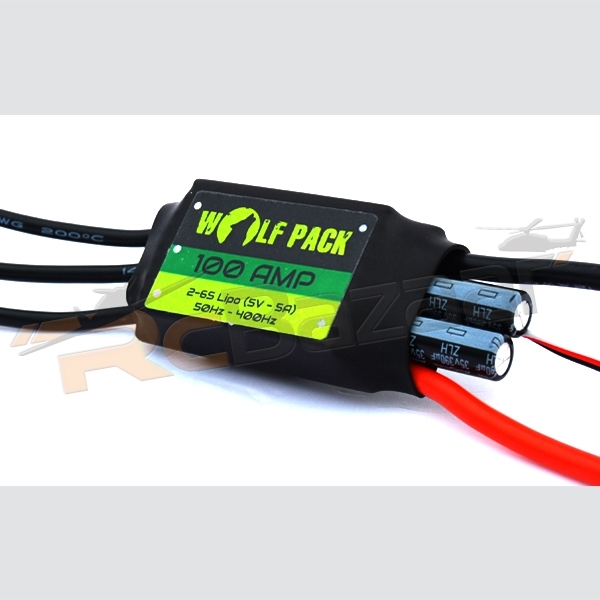

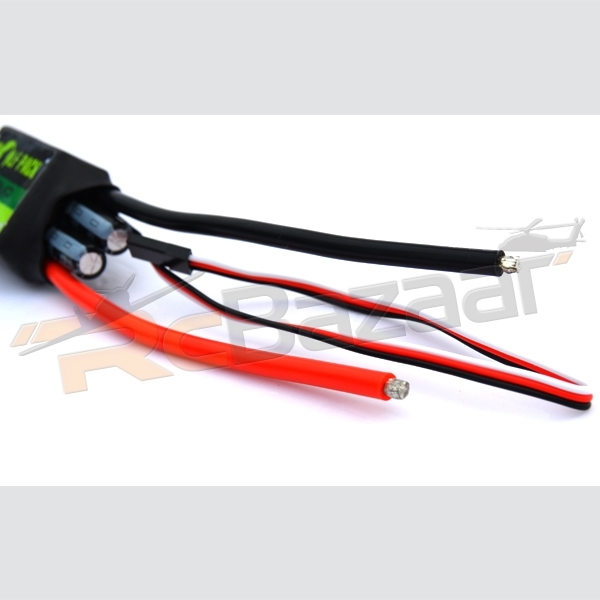

Wolfpack Opto 100Amp ESC
SKU: RZ04828
Current rating is 0.00. Total votes 0.
A great quality product for all your high end or precision flying needs
Features:
• Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
• Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters
• Programmable Items:
1. Brake Setting: Enabled / Disabled
2. Battery Type: Lipo / NiMH
3. Low Voltage Protection Mode: Soft Cut-off (Gradually reduce the output power) / Cut-off (Immediately stop the output power)
4. Low Voltage Protection Threshold: Low / Medium / High
5. Start Mode: Normal / Soft / Super Soft
6. Timing: Low / Medium / High
7. Restore Factory Default Setting
Full Protections:
• Low Voltage Cut-off: Setting by program
• Over-heat Protection: The output power will automatically reduce.
• Select electrolytic capacitor with low resistance, strong anti-interference ability.
Specification:
• Output: Continuous 100A, Burst 130A up to 10 seconds.
• Input Voltage: 5-12S Lipo 15-36 cells NiMH
• Refresh rate of the throttle signal: 50Hz – 621Hz
• Control Signal Transmission: Optical / electrical coupled system.
• Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM
• Size: (L*W*H)
Package Includes:
• 1 no: Wolfpack Opto 100Amp ESC
