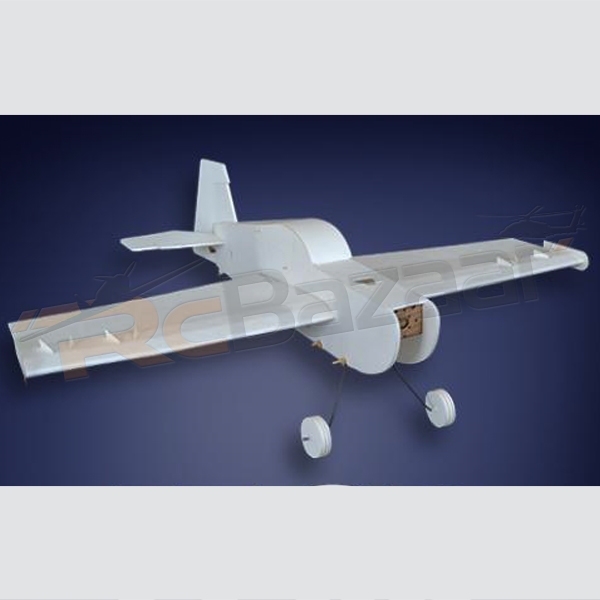

Mini 3D - PNP
SKU: RZ04788
Current rating is 0.00. Total votes 0.
Design and drawing courtesy - Flitetest
This is PNP version & contains CNC laser cut parts. this kit has 5mm depron(white), aero ply motor mount and push rods.
Specifications:
● Wing Span: 836mm
● Total CENTER OF GRAVITY: 64mm from leading edge of wing
● CONTROL SURFACE THROWS:- 10 ̊ deflection (ailerons/elevator/rudder) Expo 25%
Package include:
● 1 no: Mini 3D Kit
● 1 no: Aero ply motor mount & control horn
● 4 nos: Push rod
● 4 nos: Linkage Stopper
● Brushless motor: Avionic PRO C2822 KV1200
● Propeller: 9X6 SE
● Electronic Speed controller (ESC): Avionic 20amp
● 4 nos: Servos: Avionic AV9A 9 gms
Required but not included
● Avionic RCB6i(6ch) 2.4GHz transmitter and receiver
● Lipo battery: Wolfpack 1300 or 1800 mah 11.1v 25C
● Charger: Wolfpack B3AC charge
