AvionicPilot Transceiver Telemetry Radio Set V2 (433Mhz)
SKU: RZ04679
Current rating is 5.00. Total votes 1.
Features:
● Interchangeable air and ground modules
● Micro-USB port
● 6-position DF13 connector
● 100mW maximum output power (adjustable)
-117dBm receive sensitivity
● Based on HopeRF’s HM-TRP module
● RP-SMA connector
● 2-way full-duplex communication through adaptive TDM
● UART interface
● Transparent serial link
● MAVLink protocol framing
● Frequency Hopping Spread Spectrum (FHSS)
● Configurable duty cycle
● Error correction corrects up to 25% of bit errors
● Open-source SIK firmware
● Configurable through *Mission Planner and *APM Planner
Specification:
● Supply voltage: 3.7-6 VDC (from USB or DF13 connector)
● Transmit current: 100 mA at 20 dBm
● Receiver current: 25 mA
● Serial interface: 3.3 V UART
● Size: 53 x 25 x11mm (without antenna)
● Total Net Weight: 53g

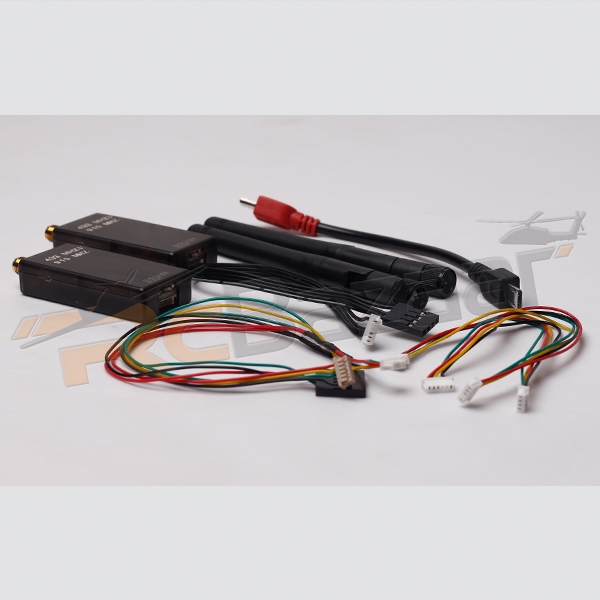

Package includes:

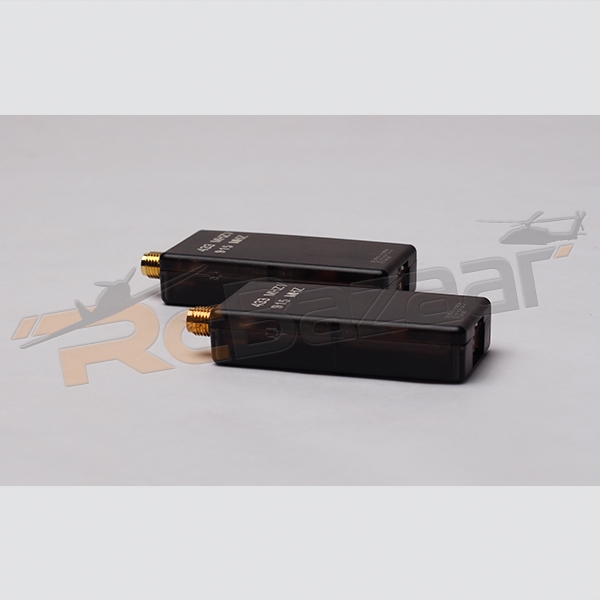

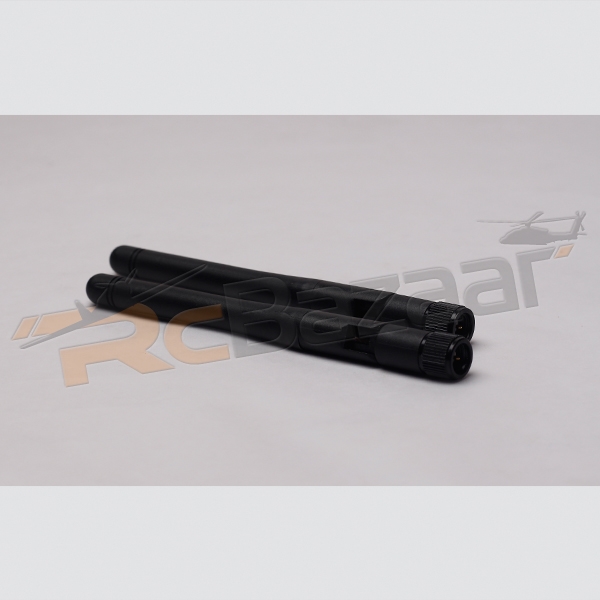

● Two radio modules with antennas 433Mhz
● Micro-USB cable

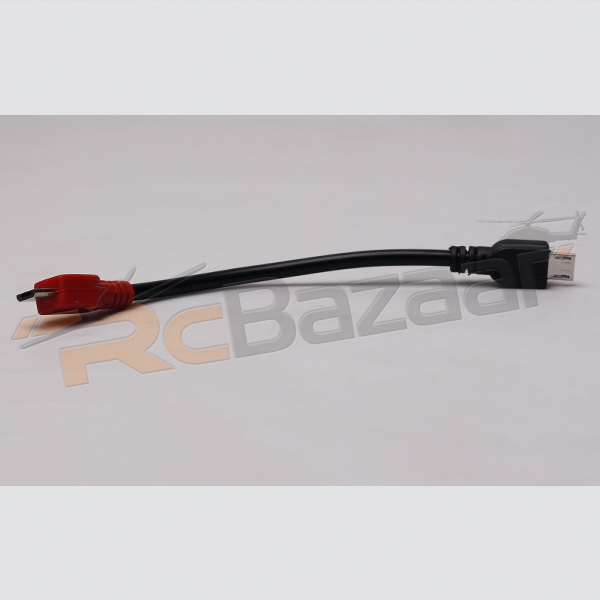

● Android OTG adapter cable

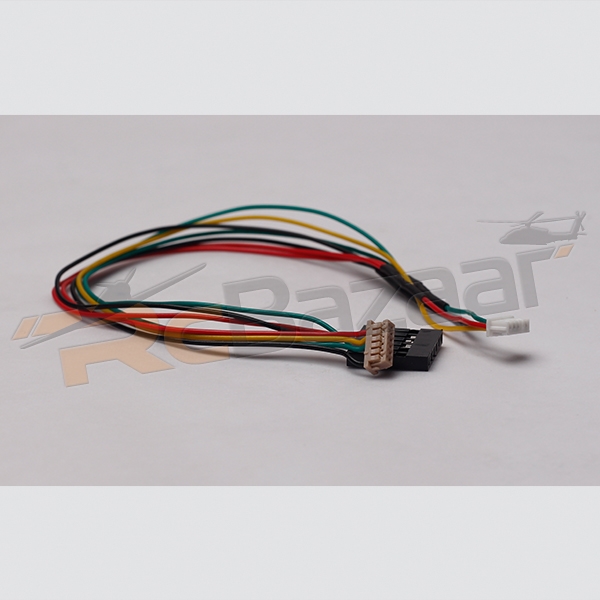

● 6-wire Pixhawk connector cable

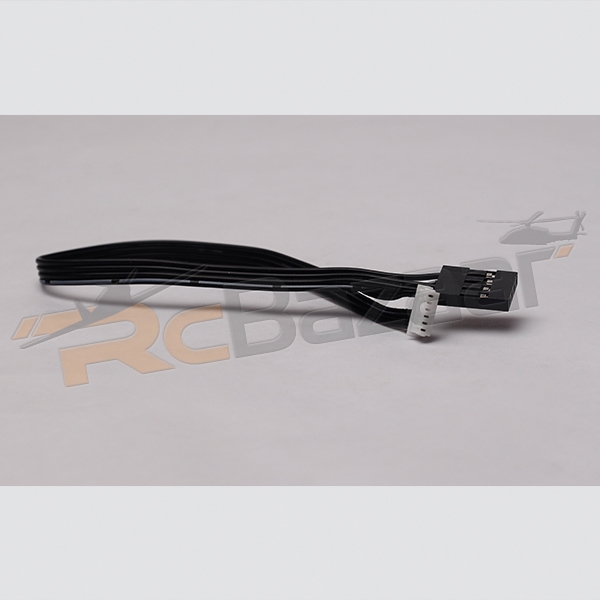

● 6-to-5-position APM and PX4 connector cable
