Super APM Flight Controller with Integrated MINI & OSD Data Transmitter & Power Module & LED Indicator Combo Set

Hardware
● Chip:  8bit ATMEGA2560
● Bulid in 3-axis gyro, accelerometer, 6 DoF Accelerometer/Gyro MPU-6000
● Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties
● Onboard 16 MegaByte AT45DB161D Dataflash chip for automatic datalogging
● Eight Channels PWM Control Input
● Eleven Analog sensors Input
● Eleven Channels PWM Output(Egiht Channels ESC Motors,Three Channels Gimbal Stabilization
● Optional off-board GPS, uBlox NEO-6M,7M,LEA-6H,M8N module with Compass.
● shielding onboard PPM decoding function, external PPM decoding board or external PPM receiver
● 12C external compass port
● Onboard OSD Function that uav ‘s attitude, mode, speed, voltage. Current. Height. The gas quantity. Star search. Location and other important data overlay the on the image,then pass back the monitor by 5.8G image transmission
● Onboard current voltage sensor
● Onbaord 3DR data transmission module
● (Optional) airspeed sensors
● (Optional) ultrasonic ranging sensor
● (optional) optical flow point sensors
● (extensible) other UART, I2C, SPI equipment

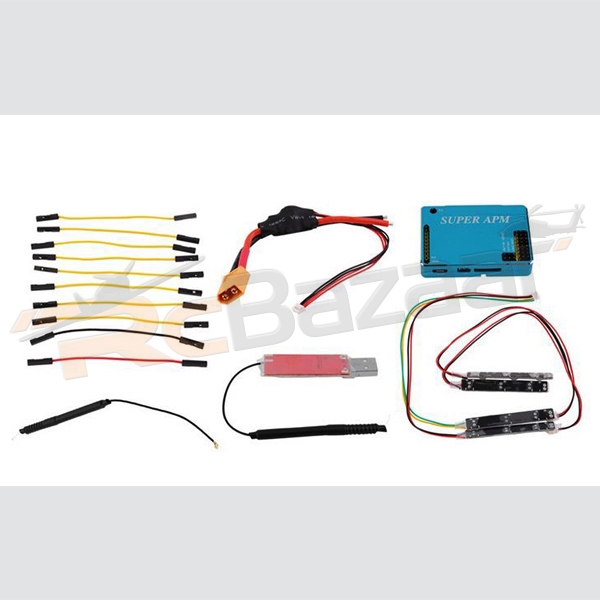

Package content:
● 1no: SUPER APM with Aluminum shell
● 1no: Ground receiving data transmission (including the antenna)
● 1no: Air module data transmission’s antenna(onboard Air 3dr data transmission)
● 1no: Battery power wire(optional XT60/TX )
● 4nos: LED Panels,Two Red Panels for APM’s unlock LEDs,Two Blue Panels for GPS Search star LEDs
● Receiver with line:Eight yellow Dupont Lines
                      One Red Dupont Line
                      One Black Dupont Line
● 1no: M8N GPS

Super APM Special Advantages:

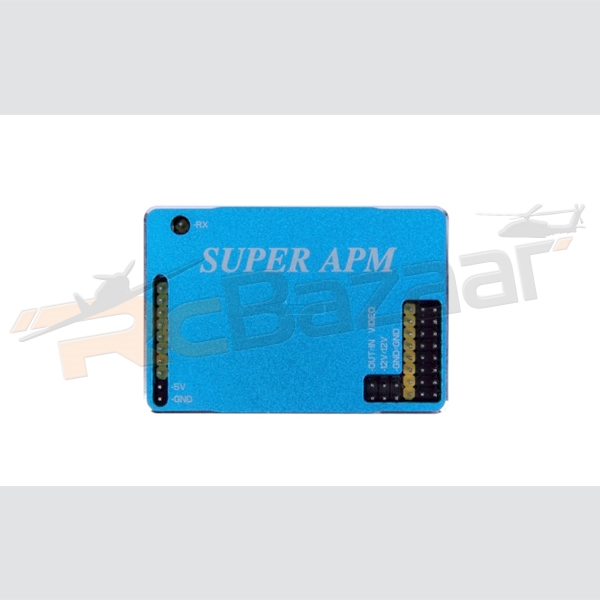

1. Suprer APM with Aluminum alloy shell has several advantages:
        a. When the flight control work,it can absorb the working heat,then prevents the hardware aging.
        b. It shields external interference signal,then makes the flight control more stable
        c. It is not easy to destroy when the drone crashs,because the hardness of Aluminum is better than plastic
2. Super APM is integrated with MINI OSD, 3DR data transmission,current voltage sensor function,Extends Two Red APM unlock’s LED panels that has three lights,Two Blue GPS Search star LED panels that has three lights.

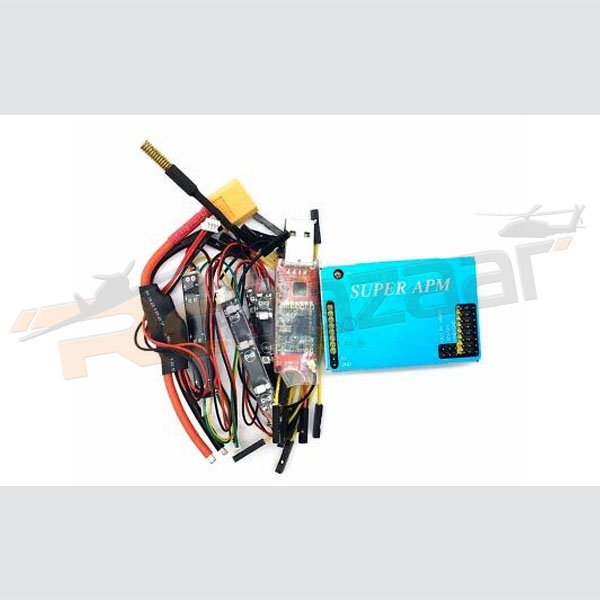

APM Super integrates Mini OSD, APM Power Module, 3DR Data Transmission, APM Unlock and GPS Search Star LED Indicator

Specification:
● Size: 64mm*44mm*12.5mm
● Net Weight: 80g
● Package Weight::89g
