Avionic (CW) Mini Quad C2204 KV2300 brushless motor
SKU: RZ04524
Current rating is 5.00. Total votes 1.
View / Write review
Share this :
Introducing Avionic series of brushless motors. This is a unique design made specifically for Avionic Quads motor with a swirl top design to allow the maximum cooling of the motor. A similar design you will not get in any other hobby store around you.
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RMP and are made for RC controlled models only and will last for more than what your RC model asks for.
The

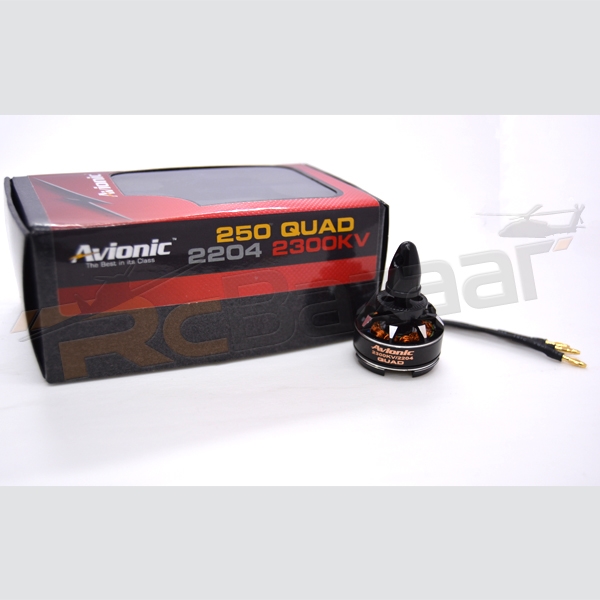

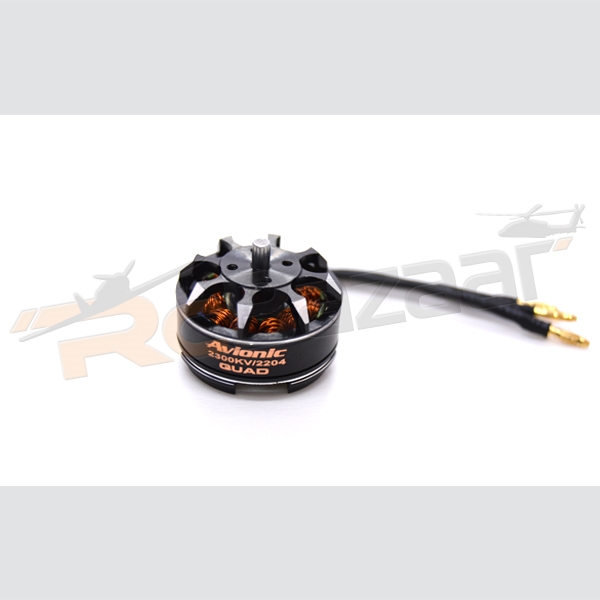

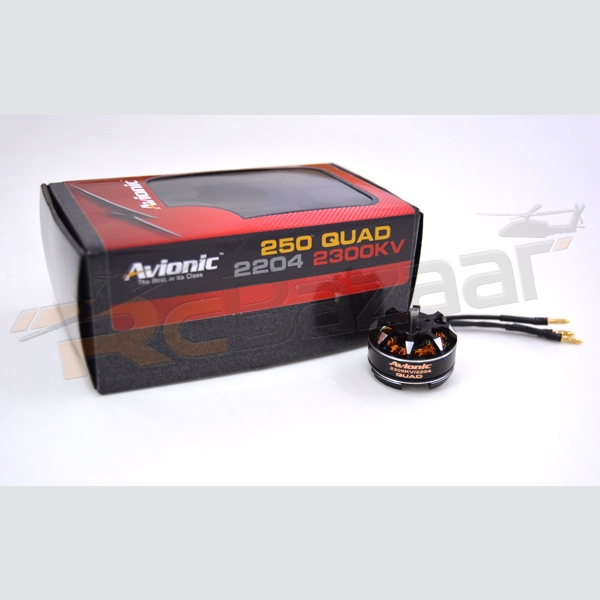

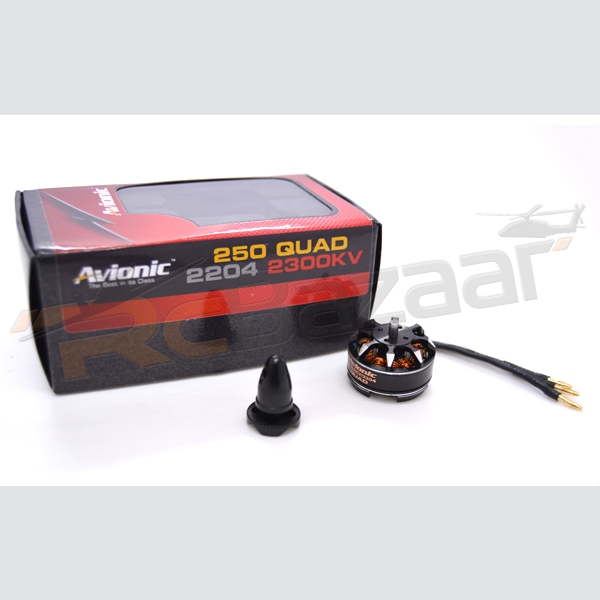

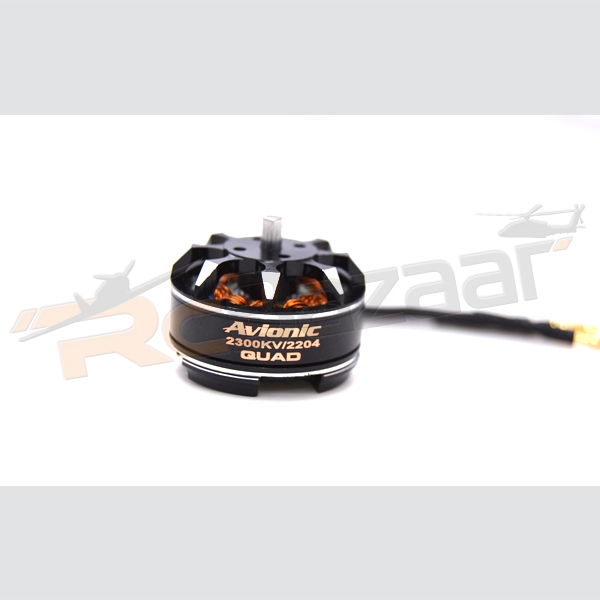

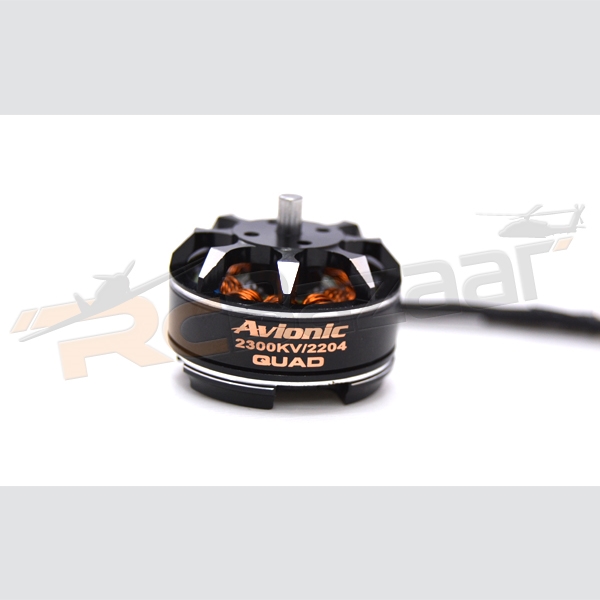

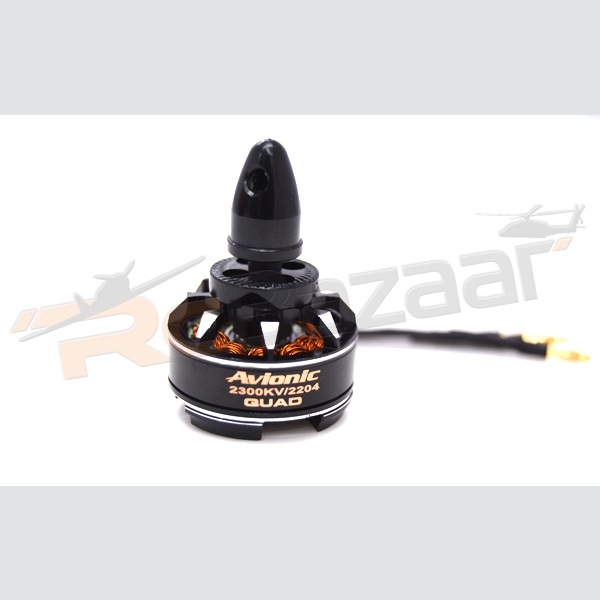

Avionic Mini Quad C2204 KV2300 brushless motor
is specifically made for FPV 250 racer sizes multi rotors.
This is CLOCK WISE ROTATION
Specification:
●
No-Load voltage: 10V
●
No-Load current: 0.7A
●
No-Load voltage: 10V
●
Kv (rpm/v): 2300
●
Power(W): 250
●
Motor Shaft: 3mm
●
Output of motor Shaft: M5
●
Resistance(mΩ): 96.5
●
Weight : 26Gms
●
Continuous current(A): 15
●
Maximum current(A): 16
●
Cells Li-PO: 2-4
●
Continuous Maximum efficiency: 96%
●
Maximum Power: 170W
LOAD TEST REPORT
Voltage (V)
Prop
Throttle
Current (Amp draw)
Thrust (Gms)
11.1
5x3 GF
50%
2.3
140
11.1
5x3 GF
66%
3.5
205
11.1
5x3 GF
83%
5.3
295
11.1
5x3 GF
100%
8.2
40
11.1
5x4 GF
50%
2.8
170
11.1
5x4 GF
66%
4.4
240
11.1
5x4 GF
83%
7.0
320
11.1
5x4 GF
100%
10.5
460
14.8
5x4 GF
50%
5.8
350
14.8
5x4 GF
66%
8.1
452
14.8
5x4 GFF
83%
12.8
630
14.8
5x4 GF
100%
14.2
720
11.1
6x3 GF
50%
2.8
190
11.1
6x3 GF
66%
4.5
290
11.1
6x3 GF
83%
7.0
400
11.1
6x3 GF
100%
10.0
520
Shipped from INDIA
Bangalore Outlet
0
1
2
3
4
5
6
7
8
9
10
Price:
Rs 1,090.00
Customers Who Bought This Item Also Bought
Wolfpack 12 Amp BLHeli ESC
Rs 695.00
Stock :
If you choose products from different warehouses , the existing shopping cart will get cleared .Do you want to continue?
Wolfpack 20 Amp ESC
Rs 860.00
Stock :
If you choose products from different warehouses , the existing shopping cart will get cleared .Do you want to continue?
(SG90) Tower Pro 9g Servo
Rs 150.00
Stock :
If you choose products from different warehouses , the existing shopping cart will get cleared .Do you want to continue?
Wolfpack 20Amp BLHeli
Rs 860.00
Stock :
If you choose products from different warehouses , the existing shopping cart will get cleared .Do you want to continue?
7 x 4 Folding Propeller
Rs 195.00
Stock :
If you choose products from different warehouses , the existing shopping cart will get cleared .Do you want to continue?
Wolfpack White 2200mah 25c 11.1V
Rs 1,380.00
Stock :
If you choose products from different warehouses , the existing shopping cart will get cleared .Do you want to continue?
Product reviews
Very Nice
Very Nice Product.....
motor has get more speed using 6x3 prop..
From: Harish Kumar | Created on: 4/2/2017 8:26 PM
Was this review helpful?
Yes
No
(
0
/
0
)
