Avionic AV 45HB - 3KGT servo (360deg rotation)
SKU: RZ04404
Current rating is 0.00. Total votes 0.

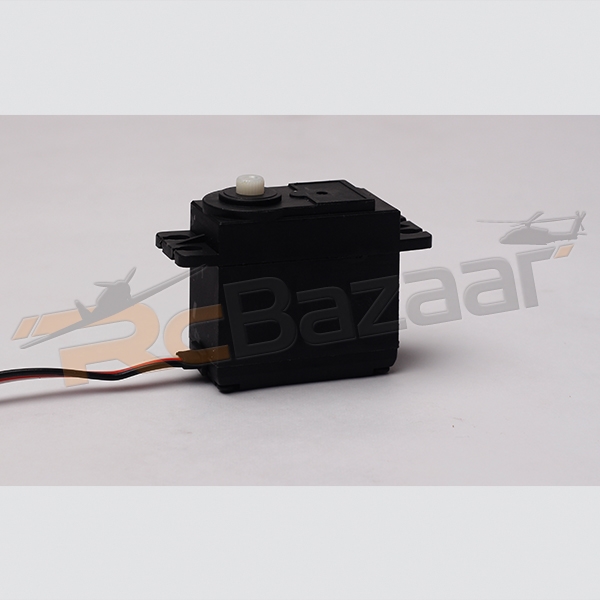

This is a 360 degree rotation standard size servo made specifically for Robotic's project with a stall torque of 3KG (lift capacity)
SPECIFICATIONS:
● Dead band: 7μs
● Working frequence: 1520μs / 50hz
● Operating Speed (4.8V): 0.15sec/60°
● Operating Speed (6V): 0.12sec/60°
● Stall Torque (4.8V): 3.25kg.cm (45.14oz/in)
● Stall Torque (6V): 3.95 kg-cm (54.87 oz/in)
● Dimensions: 40.5X20.3X38mm
● Weight: 45.5 g (1.61oz)

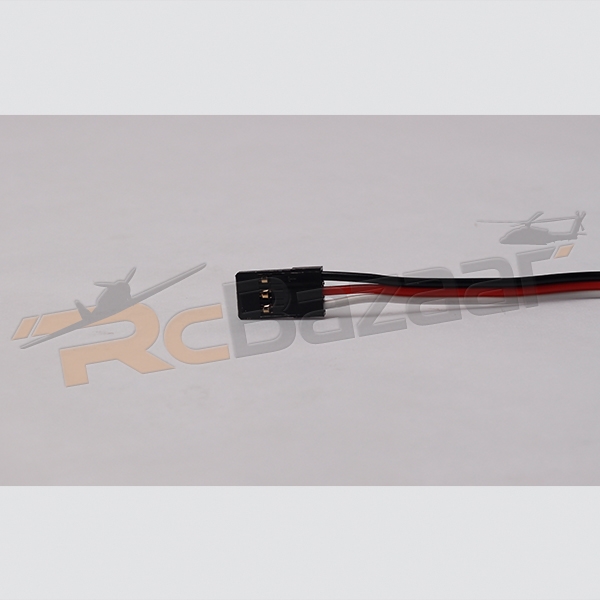

● Connector Wire Length: JR 265 mm

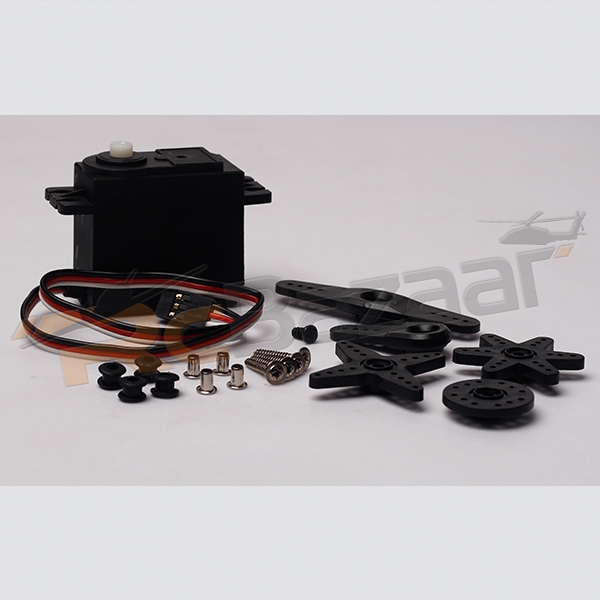

Package content:
● 1 No: Avionic AV 45HB - 3KGT servo (360deg rotation)
