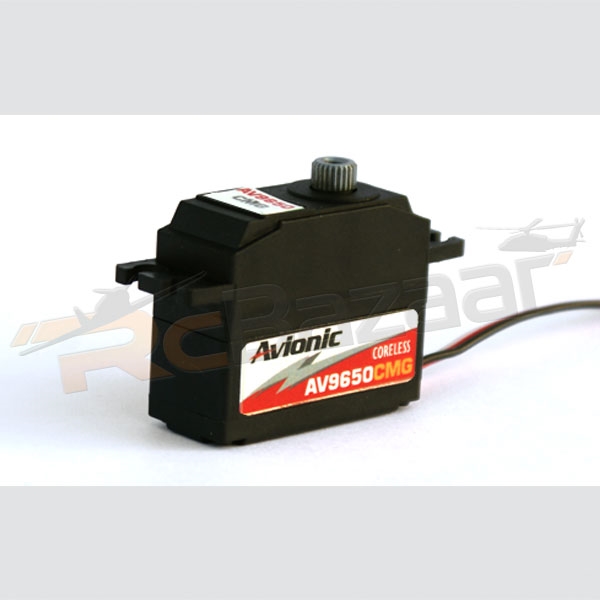

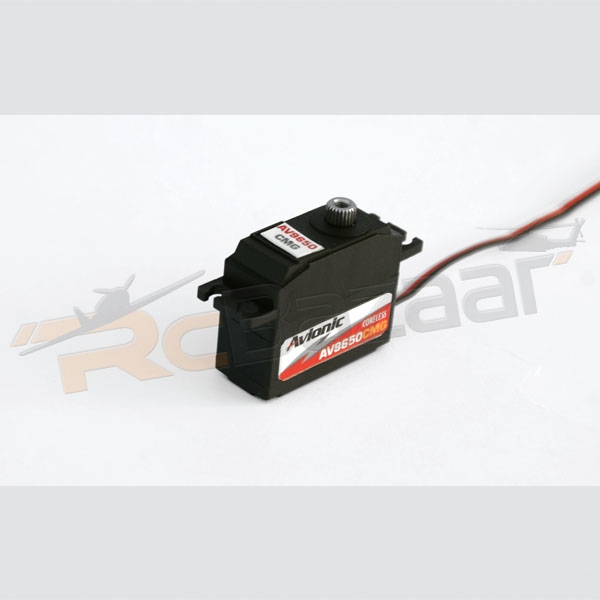

Avionic Coreless digital metal gear 25g Servo (AV9650CMG)
SKU: RZ03123
Current rating is 0.00. Total votes 0.
Features:
● High performance digital coreless servo
● High-precision Taiwan-made aluminium gears with hard anodizing
● Dual ball bearings
● Waterproof
Specifications:
● Dead band: 1μs
● Working frequency: 1520μs / 330hz
● Motor: coreless motor
● Dimensions: 36X15X32.4 mm/1.42X0.59X1.28in
● Weight: 26.32 g (0.93oz)
● Connector Wire Length: JR 180 mm (7.09in)
● Bearing: 2BB
At 4.8V
● Speed (sec/60): 0.11
● Torque (Kg-cm): 5.3
At 6.0V
● Speed (sec/60): 0.9
● Torque (Kg-cm): 6.6
