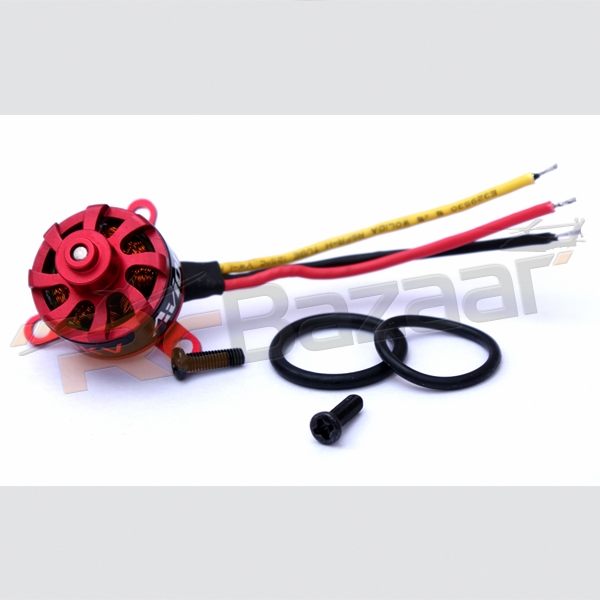

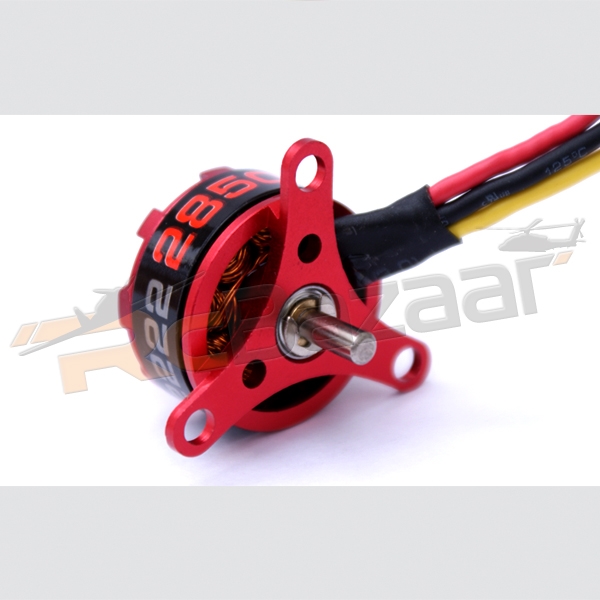

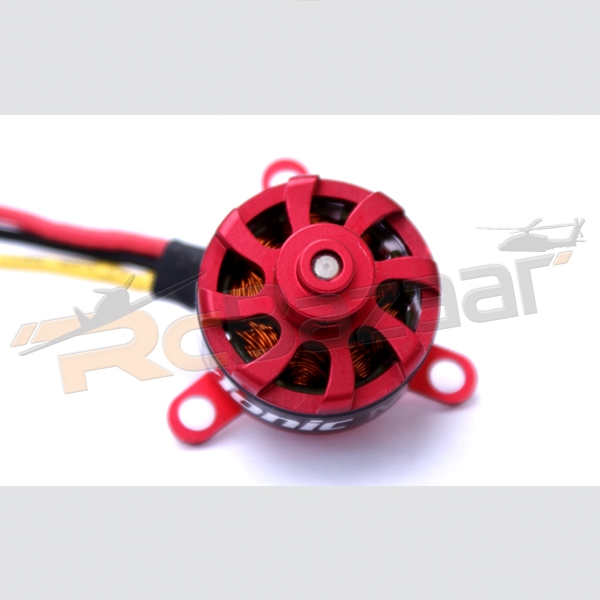

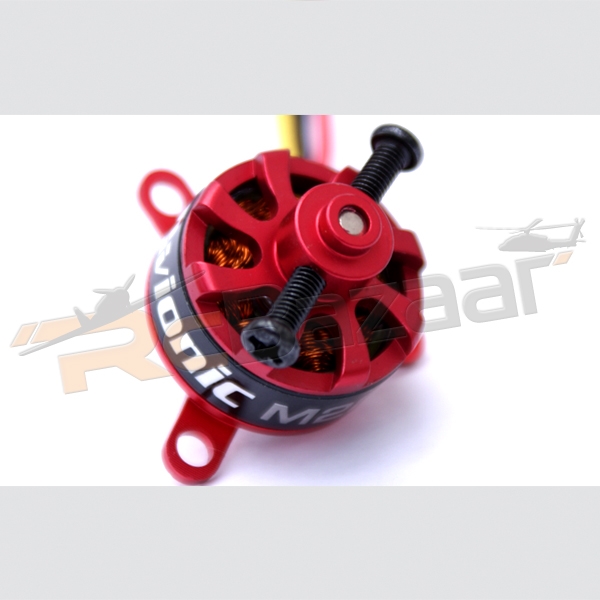

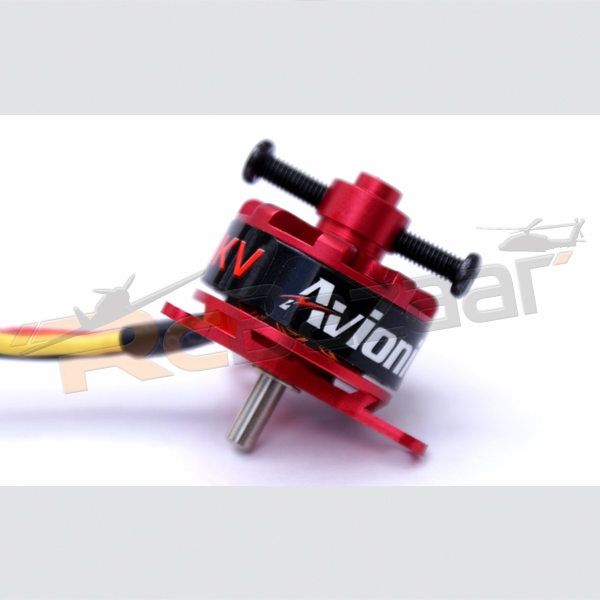

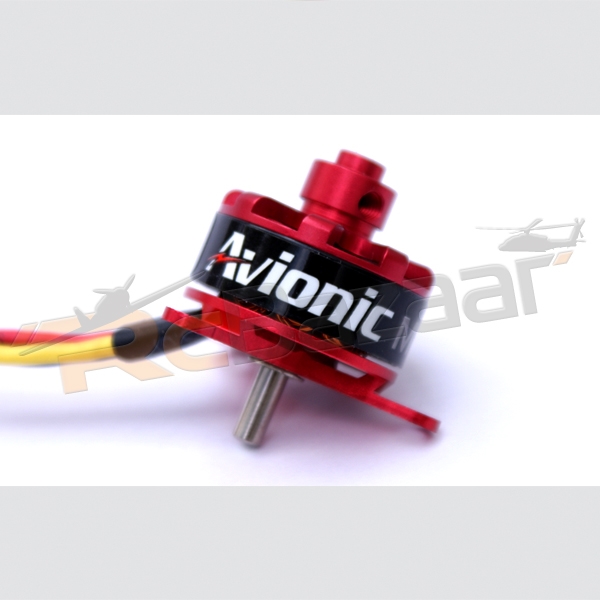

Introducing Avionic PRO series of brushless motors and this is our Mini Series.
You will be struck by the build quality and performance of this motors and did we forget to mention that its only 18gms in weight?..
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RPM and are made for RC controlled models only and will last for more than what your RC model asks for.
Specification:
● Stator Diameter: 18.2 mm(0.717 in)
● Stator Thickness: 4.0 mm(0.157 in)
● No. of Stator Arms: 9
● No. of Magnet Poles: 12
● Motor Wind: 16 Turn Y

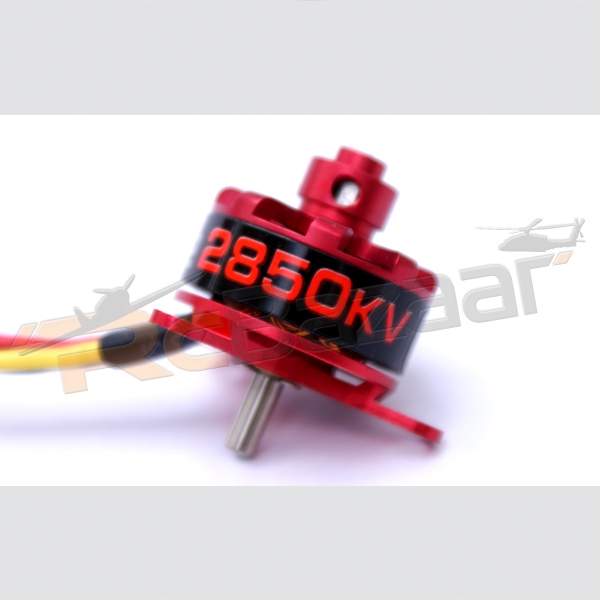

● Motor Kv: 2850 RPM / Volt
● No-Load Current (Io): 0.5 Amps @ 7 volts
● Max Continuous Current: 9Amps
● Max Continuous Power: 65 Watts
● RESISTANCE 217 mΩ
● Weight: 18 Grams(0.635oz)

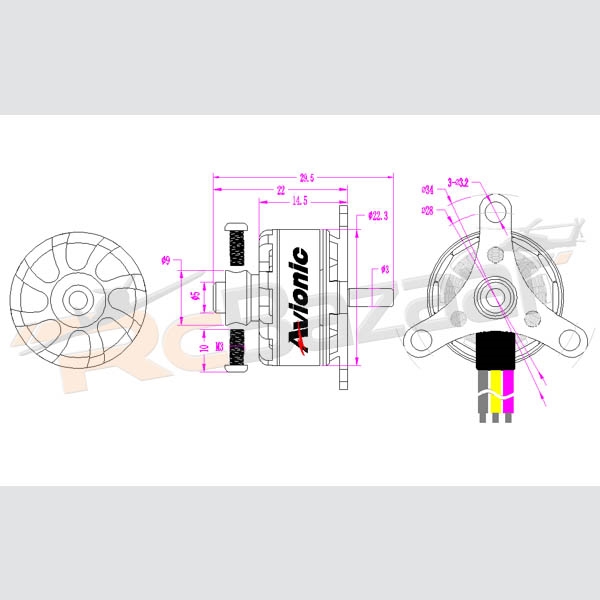

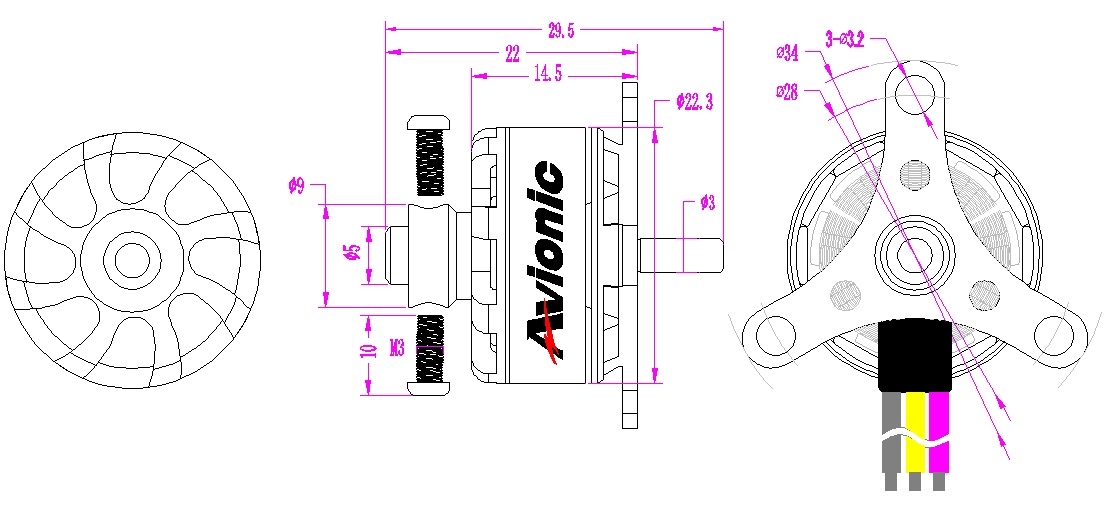

● Outside Diameter: 22.3 mm(0.878 in)
● Shaft Diameter: 3.0 mm(0.118 in)
● Body Length: 22.0 mm(0.866 in)
● Overall Shaft Length: 29.5 mm(1.161 in)
● Max LiPo Cell: 2-3 S
● Motor Timing: 5°
● Drive Frequency: 8kHz
LOAD TEST REPORT
| Voltage (V) |
Prop |
Pull (Gms) |
Current (Amp draw) |
ESC |
| 7.4 |
GF 5x3 |
176 |
4.9 |
10A |
| 7.4 |
GF 5x4 |
180 |
6.3 |
10A |
| 7.4 |
GF 6x3 |
212 |
6.9 |
12A |
| 7.4 |
AEO 7x3.5 |
220 |
9.1 |
12A |
| 7.4 |
EMP 6x3 E |
193 |
8.1 |
12A |
| 7.4 |
EMP 6x5 E |
185 |
10.1 |
120A |
