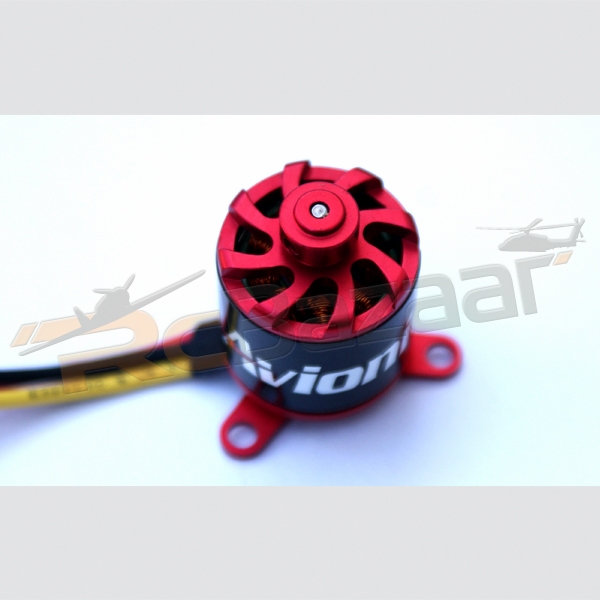

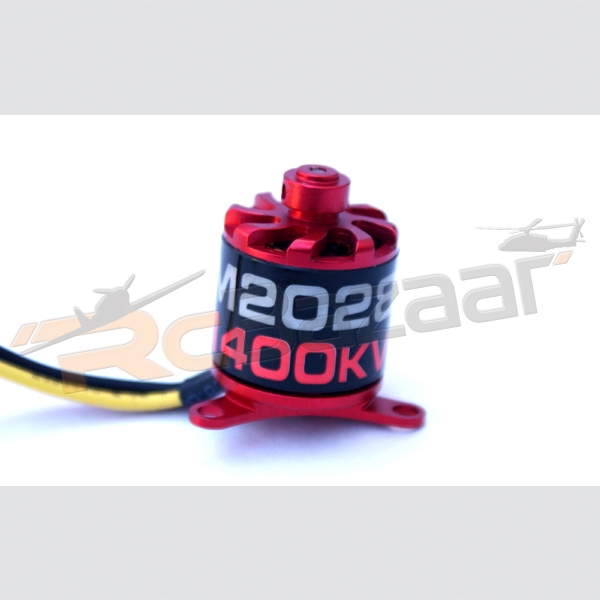

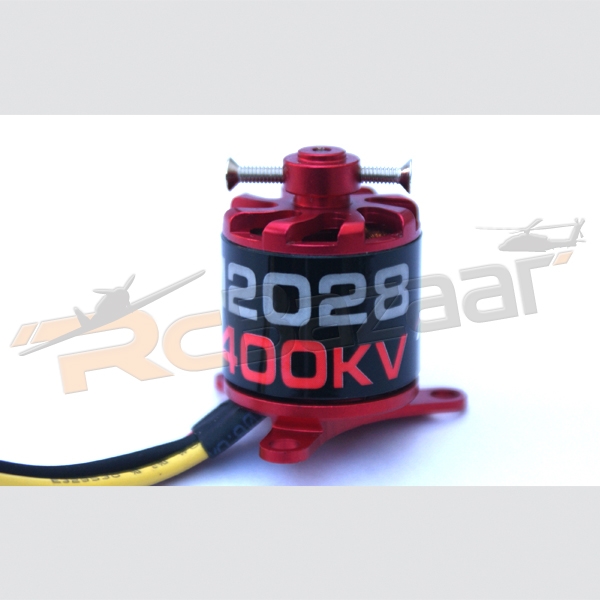

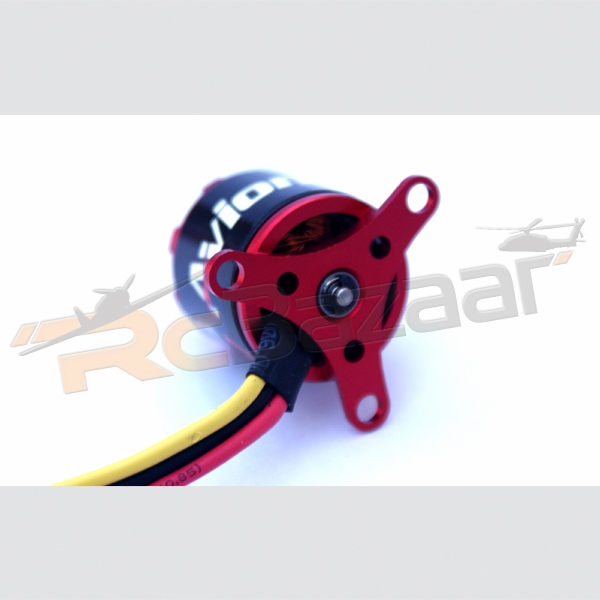

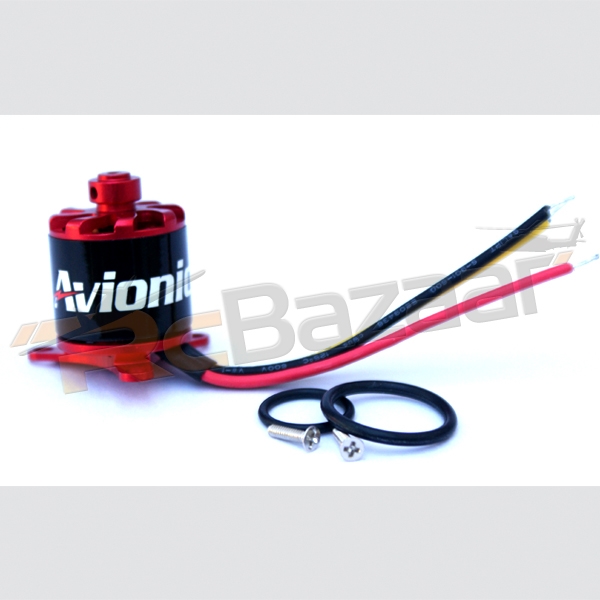

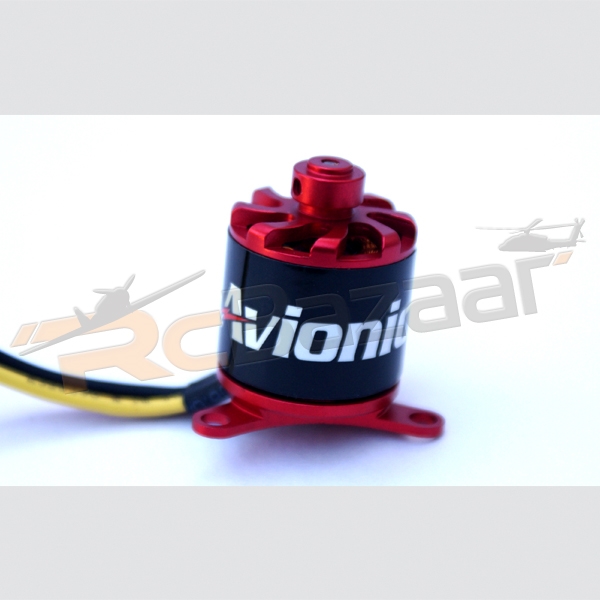

Introducing Avionic PRO series of brushless motors and this is our Mini Series.
You will be struck by the build quality and performance of this motors and did we forget to mention that its only 27gms in weight?..
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RPM and are made for RC controlled models only and will last for more than what your RC model asks for.
Specification:
● Stator Diameter: 16.5 mm(0.65 in)
● Stator Thickness: 12.0 mm(0.47 in)
● No. of Stator Arms: 9
● No. of Magnet Poles: 12
● Motor Wind: 19 Turn D
● Motor Kv: 1400 RPM / Volt
● No-Load Current (Io): 0.3 Amps @ 7 volts
● Max Continuous Current: 8.0Amps
● Max Continuous Power: 72 Watts
● RESISTANCE 260 mΩ
● Weight: 27 Grams(0.95oz)

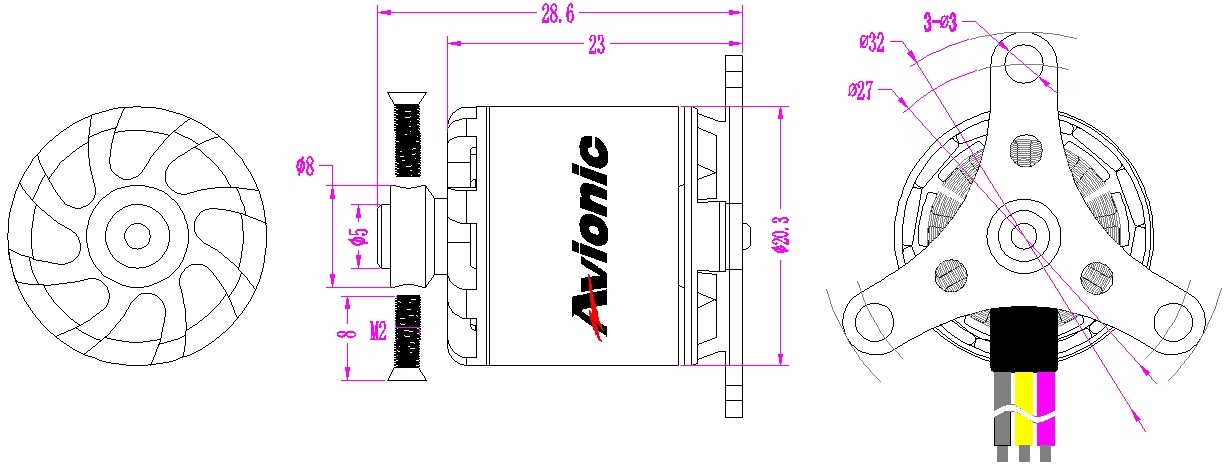

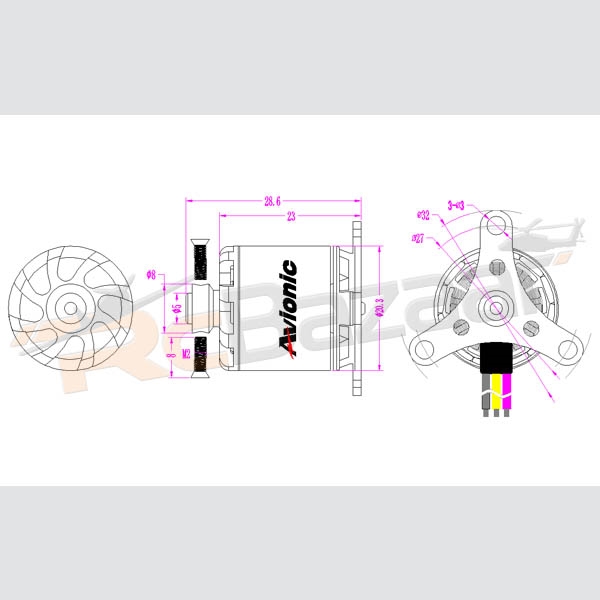

● Outside Diameter: 20.3 mm(0.799 in)
● Shaft Diameter: 2.0 mm(0.079 in)
● Body Length: 28.6 mm(1.126 in)
● Overall Shaft Length: 29.5 mm(1.161 in)
● Max LiPo Cell: 2-3 S
● Motor Timing: 5°
● Drive Frequency: 8kHz
LOAD TEST REPORT
| Voltage (V) |
Prop |
Pull (Gms) |
Current (Amp draw) |
ESC |
| 7.4 |
EMP 8x3.8 SF |
280 |
6.2 |
10A |
| 7.4 |
EMP 9x4.7 SF |
310 |
7.6 |
10A |
| 7.4 |
EMP 10x4.7 SF |
320 |
9.5 |
12A |
| 7.4 |
GWS 8x6 |
250 |
7.4 |
10A |
| 7.4 |
GWS 9x4.7 |
313 |
7.9 |
10A |
| 7.4 |
LCD 8x4 |
216 |
4.6 |
10A |
| 7.4 |
XXD 9x5 |
293 |
7.0 |
10A |
| 11.1 |
GF 6x3 |
235 |
3.2 |
12A |
| 11.1 |
GWS 7x4.5 |
392 |
8.5 |
12A |
| 11.1 |
XXD 8x4 |
366 |
8.8 |
12A |
