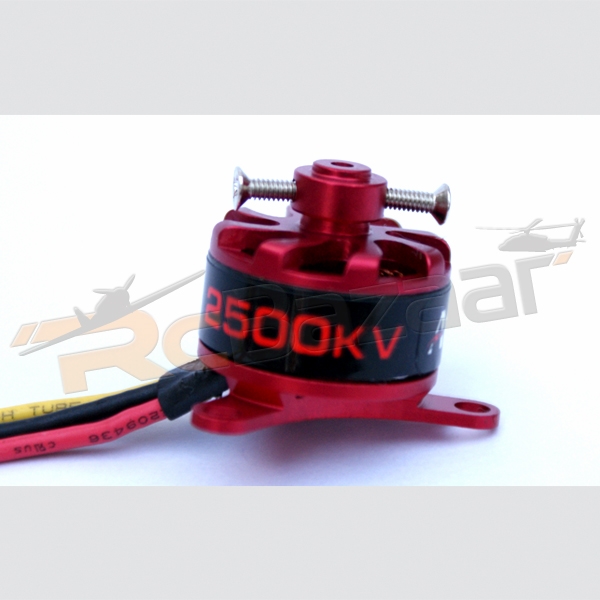

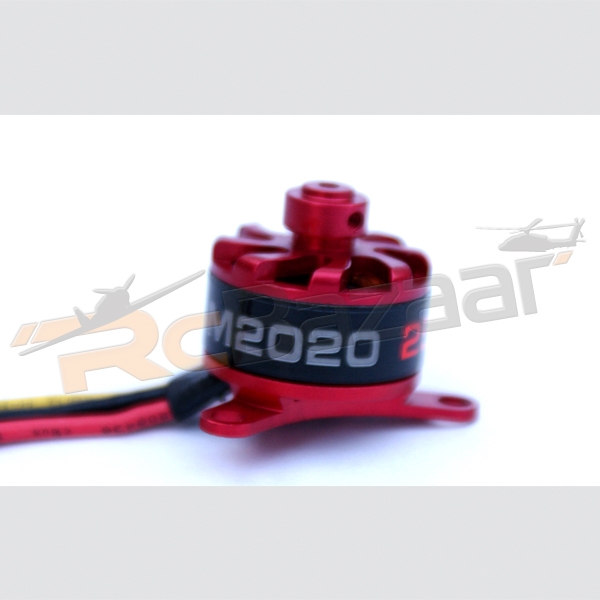

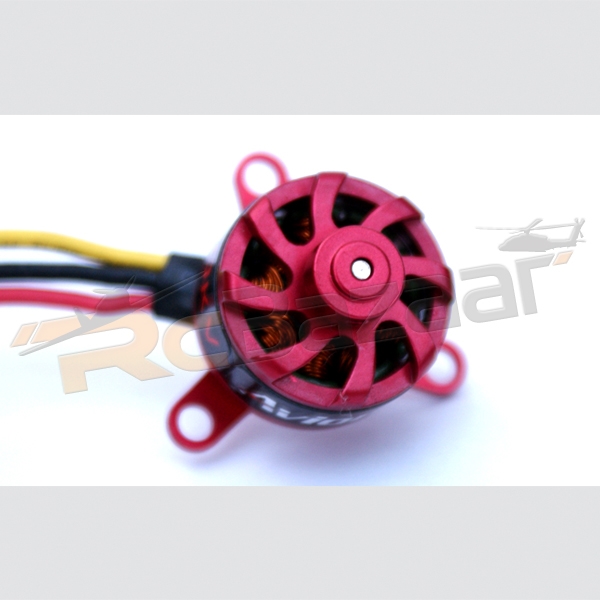

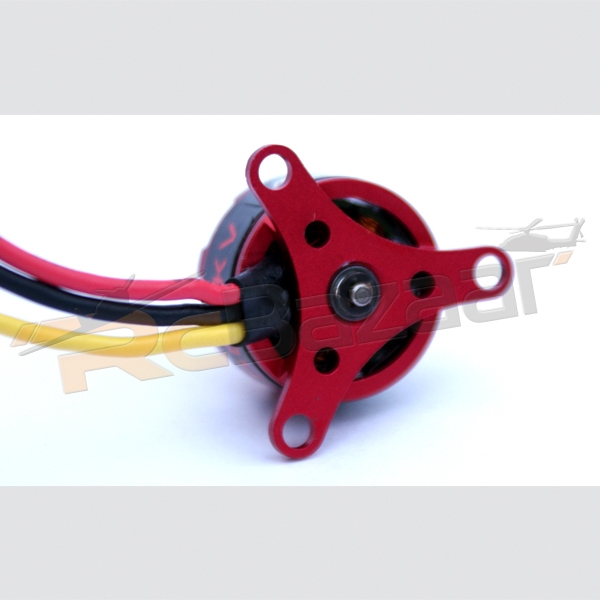

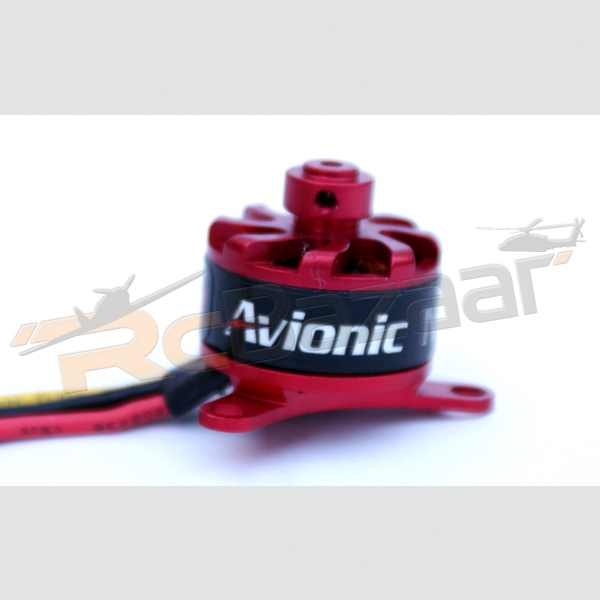

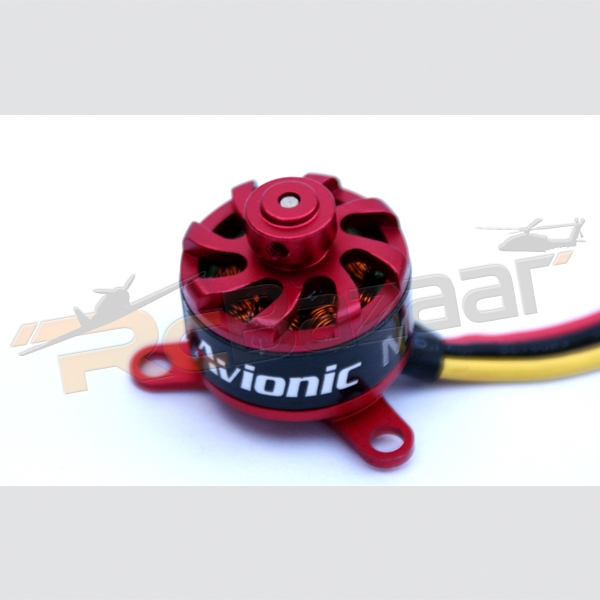

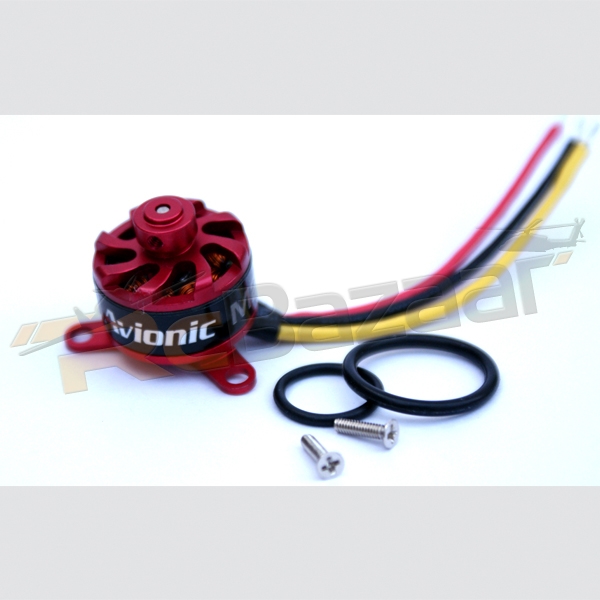

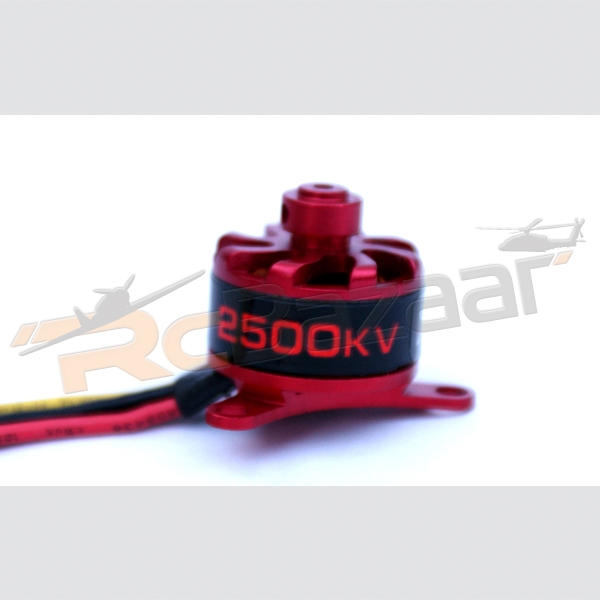

Introducing Avionic PRO series of brushless motors and this is our Mini Series.
You will be struck by the build quality and performance of this motors and did we forget to mention that its only 15gms in weight?..
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RPM and are made for RC controlled models only and will last for more than what your RC model asks for.
Specification:
● Stator Diameter: 16.5 mm(0.65 in)
● Stator Thickness: 4.0 mm(0.16 in)
● No. of Stator Arms: 9
● No. of Magnet Poles: 12
● Motor Wind: 19 Turn Y
● Motor Kv: 2500 RPM / Volt
● No-Load Current (Io): 0.3 Amps @ 7 volts
● Max Continuous Current: 7 Amps
● Max Continuous Power: 51 Watts
● RESISTANCE 405 mΩ
● Weight: 15 Grams(0.53oz)

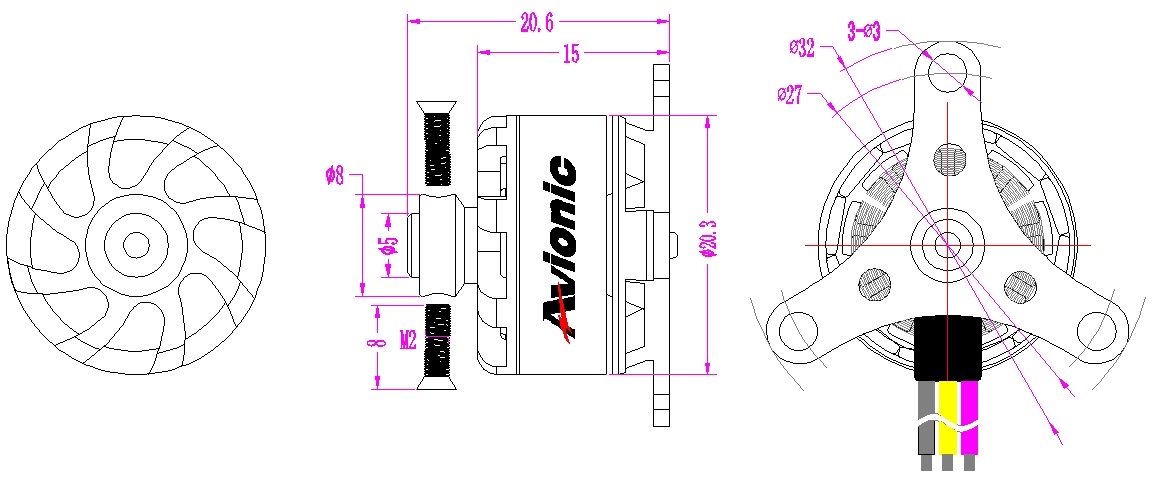

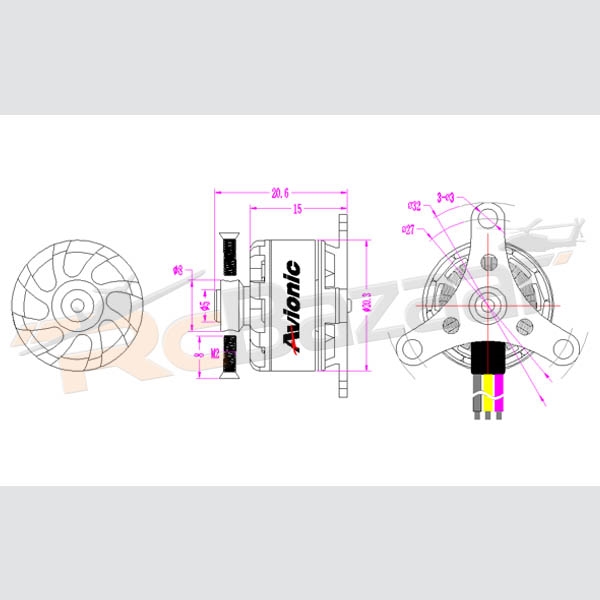

● Outside Diameter: 20.3 mm(0.799 in)
● Shaft Diameter: 2.0 mm(0.079 in)
● Body Length: 20.6 mm(0.811 in)
● Overall Shaft Length: 21.5 mm(0.846 in)
● Max LiPo Cell: 2 S
● Motor Timing: 5°
● Drive Frequency: 8kHz
LOAD TEST REPORT
| Voltage (V) |
Prop |
Pull (Gms) |
Current (Amp draw) |
ESC |
| 7.4 |
GWS 4.5x3 |
103 |
3.2 |
10A |
| 7.4 |
GWS 4.5x4 |
113 |
3.4 |
10A |
| 7.4 |
GF 5x3 |
130 |
3.2 |
10A |
| 7.4 |
GF 5x4 |
138 |
3.9 |
10A |
| 7.4 |
XXD 6x3 |
161 |
4.3 |
10A |
| 7.4 |
EMP 6x3 E |
143 |
5.5 |
10A |
