Features
● Small size,35x35mm mounting holes
● 6 PWM input channels for standard receiver or PPM SUM receiver
● Up to 8-axis motor output
● Supported 2-axis gimbal and auto trigger controll
● FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display
● I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar
● Ultra low noise 3.3V LDO voltage regulator
● ATMega 328P Microcontroller
● MPU6050C 6 axis gyro/accel with Motion Processing Unit
● HMC5883L 3-axis digital magnetometer
● BMP085 digital pressure sensor
● PCA9306DP1 logic level converter

Specifications
● Dimension: 40mmX40mm
●  Height: 11.6mm
● Weight: 9.3g
● Fixing hole spacing: 35mm (It can be changed to 45mm by CRIUS Distribution Board)
● Hole diameter: 3.1mm

Flight Modes
One of the following basic mode
●  Acro
●  Level
●  Alt Hold
● Head Lock
Optional mode
●  HeadFree (CareFree)
● GPS Hold (Need GPS receiver + I2C-GPS NAV Board)
● GPS Return to home position (Need GPS receiver + I2C-GPS NAV Board)

To learn more about MultiWii, please visit http://www.multiwii.com

Packing contents

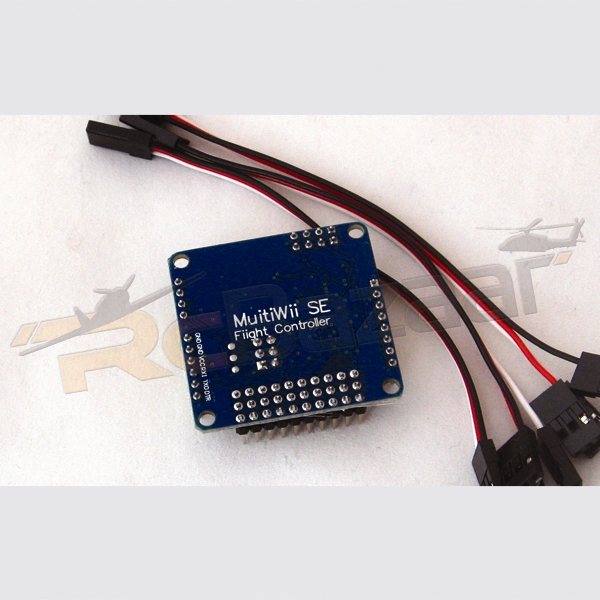

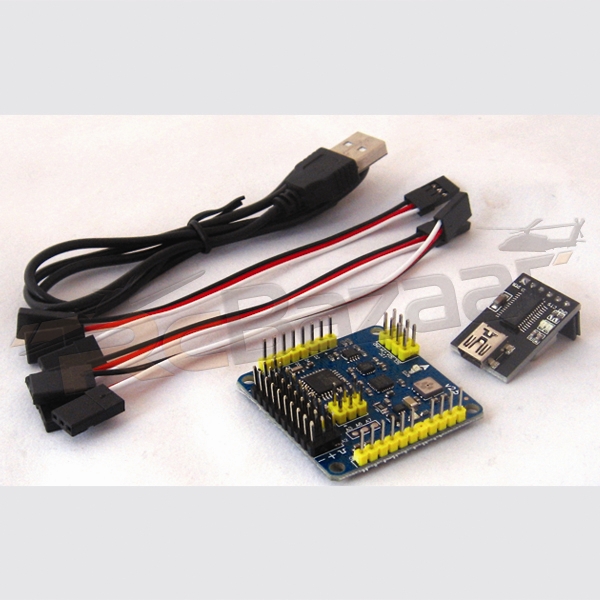

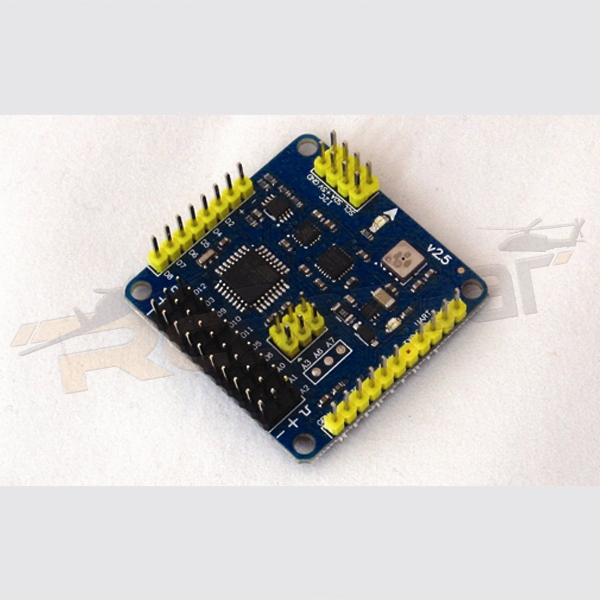

● 1 no:  MWC MultiWii SE V2.5 flight control board
