Savox SH-1357 Super Speed Mini Digital Servo

SKU: RZ01293


Current rating is 5.00. Total votes 1.
Bookmark and Share Share this :
Please note that as per the distributor territorial agreements we cannot ship this product outside of India / International. We apologize to our international customers for this inconvenience and if payments have been made the same will be refunded back to you after deducting the bank or paypal or credit card merchant charges. THIS PRODUCTS WILL ONLY BE SHIPPED WITHIN INDIA

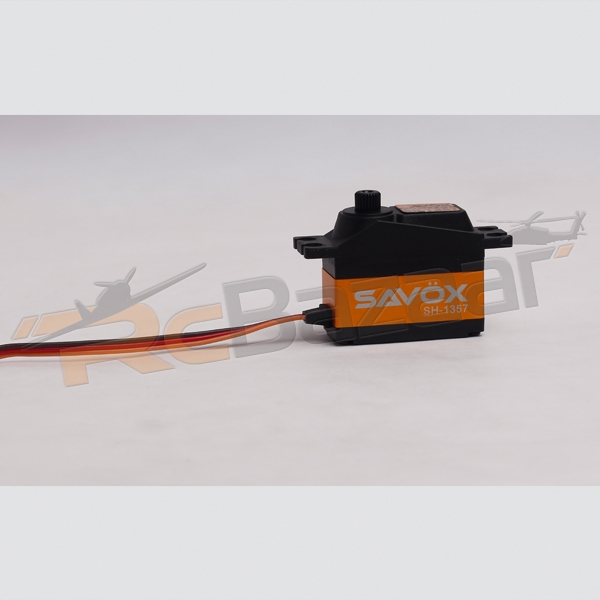

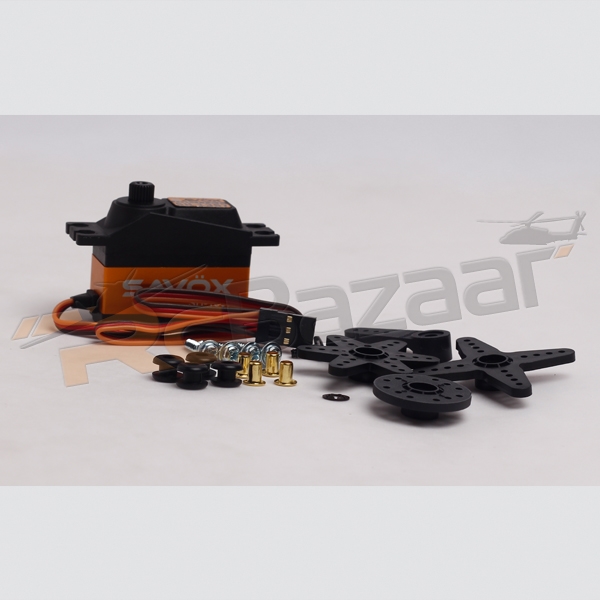

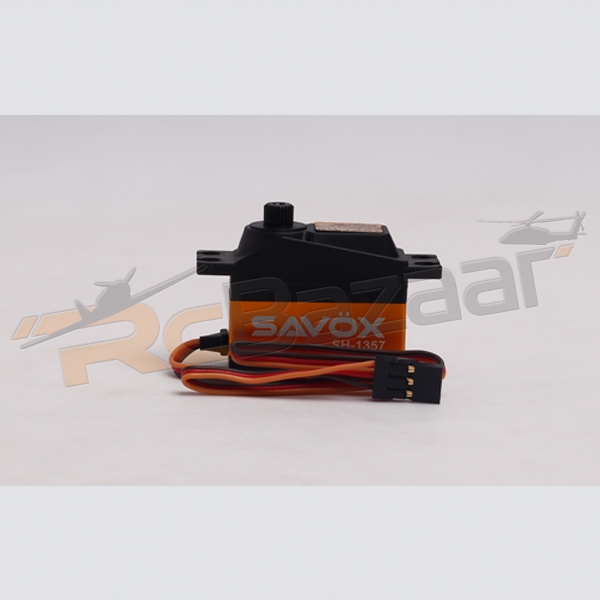

This is the Savox SH-1357 Super Speed Mini Digital Servo.

Features:
● Light weight construction means less power consumption
● The coreless motor brings output performance to new levels and ensures smoother, faster, and more efficient operation.
● The metal case design not only looks awesome but also allows for cooler and smoother operating temps.
● Our servos are totally green – from materials to production, these servos are environmentally friendly.
● Ideal as a rudder servo on 450 class helis, CCPM servo on 500 class helis, and steering for 1/12th scale surface vehicles.

Specification:
● Dimensions(mm):  35.0X15.0X29.2
● Weight(g):  26.0
● Speed(@4.8V sec/60):  .09
● Torque(@4.8V oz-in):  26.4
● Speed(@6.0V sec/60):  .07
● Torque(@6.0V oz-in):  34.7
● Gear:  Industrial Plastic
● Bearing:  2BB
● Case:  Aluminum
● Running current (at no load):  80 mA @ 4.8V
● Running current (at no load):  100 mA @ 6.0V
● Stall current (at locked):  800 mA @ 4.8V
● Stall current (at locked):  1000 mA @ 6.0V
● Idle current (at stopped):  6 mA @ 4.8V
● Idle current (at stopped):  6 mA @ 6.0V
● Limit angle:  210°±10°

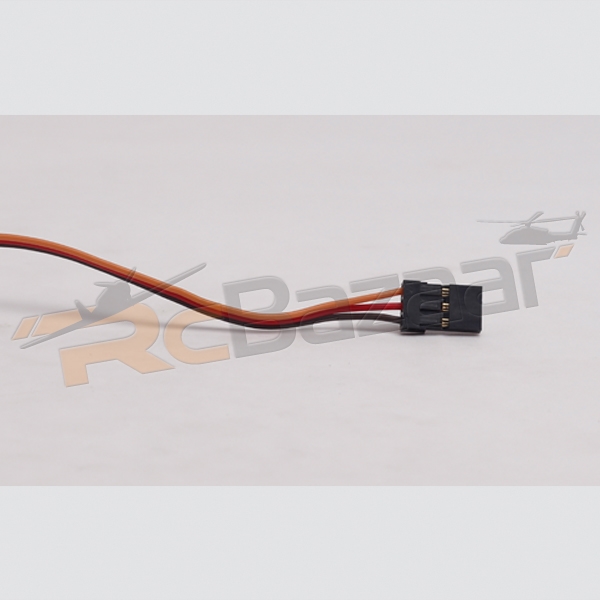

● Connector wire gauge:  #26 AWG
● Connector wire length:  250 ±5 mm

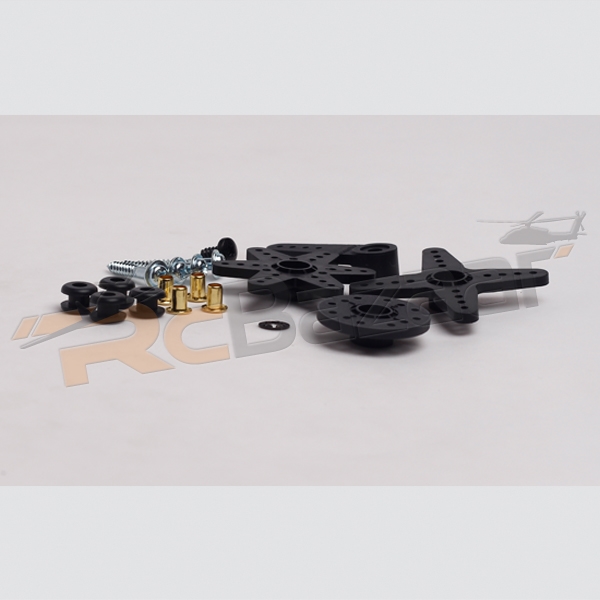

● Horn gear spline:  25T
● Control system:  Pulse width modification
● Amplifier type:  Digital Controller
● Operating Travel:  110° (when1000→2000 μsec)
● Neutral position:  1500 μsec
● Dead band width:  5 μsec
● Rotating direction:  Counterclockwise (when1500→2000 μsec)
● Pulse width range:  800→2200 μsec
Maximum travel:  Approx 154°(when800→2200 μsec)


Shipped from INDIA
Bangalore Outlet
Rs 3,085.00
